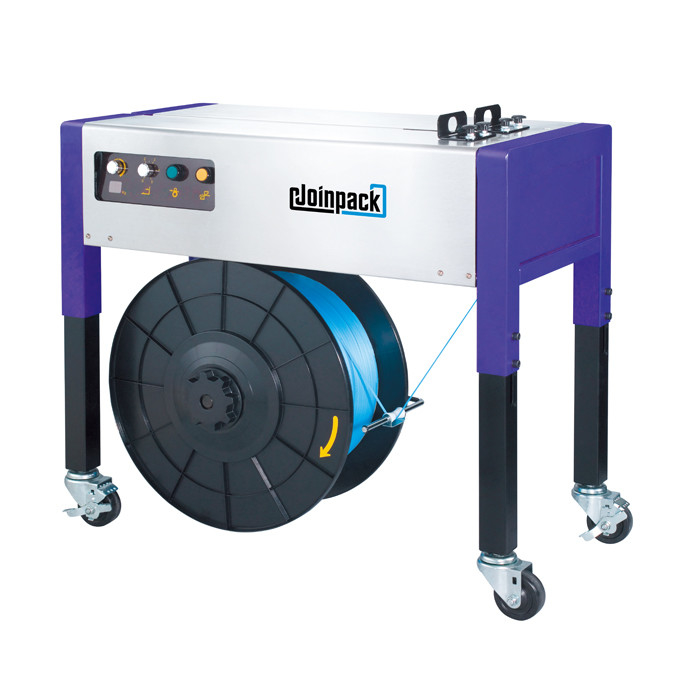

Semi Automatic Handheld Strapping Machine 240V Join Pack With Tension Indicator

Join Pack Semi Automatic Strapping Machine Equipped With Tension Indicator S-555N

PRODUCT DESCRIPTION
High performance equipped with digital indicator for electrical tension adjustment.

Low voltage DC motor driven, perform fast speed and wide tension range at low noise.
Available for narrow and thick strap.
Table height adjustable.
Legs dismountable for saving transportation and storage cost.

Cycle Time	2 sec./strap
Tension Range	3~40kgs
Strap Width	5,6,9,12,15.5mm adjustable
Sealing Method	Heating element
Reel Inside Diameter	200,230,280mm specified
Power Supply	100/110/220/230/240V 50/60HZ, 1PH
Table Height	750~830mm adjustable
Power Consumption	0.4kw
Machine Dimension (L x W x H mm)	L845 x W430 x H750
Machine Weight (50%,100%,150%,200%)	65kgs

Features of the semi-automatic strapping machine for PET strap:

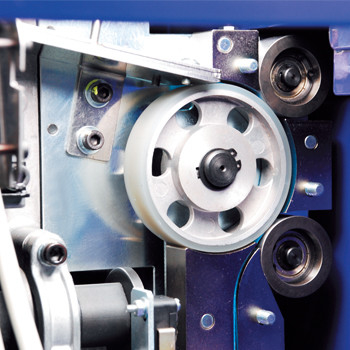

• Big main roller driven by DC motor
  Wide tension range from 3 to 40 KGs
  Width: 5mm to 15 mm
  Thickness: 0.4 mm

• Reliable tension system :
• Various strap thickness and width workable:
• Less mechanical parts, easy maintenance

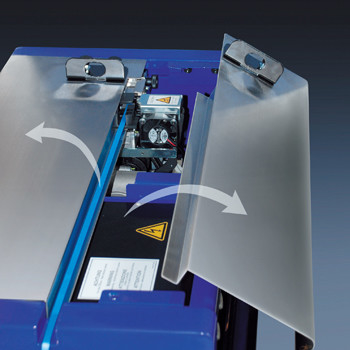

• Easy to access track guide and main roller
• Front side tension adjustment with indicator
• PCB: Plug and play system, easy replacement

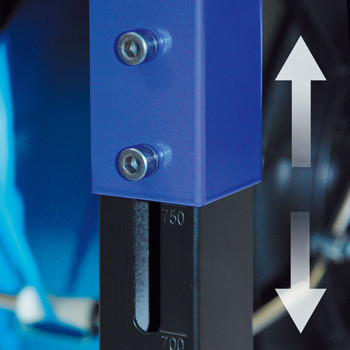

• Table height adjustable from 750mm to 830mm

How to use semi-automatic strapping machine:

1. Power switch: Turn ON to start the machine, and OFF to stop the machine.

2. Power indicator light (POWER): Turn on the power switch, the light is on.

3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.

4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.

5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.

7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.
