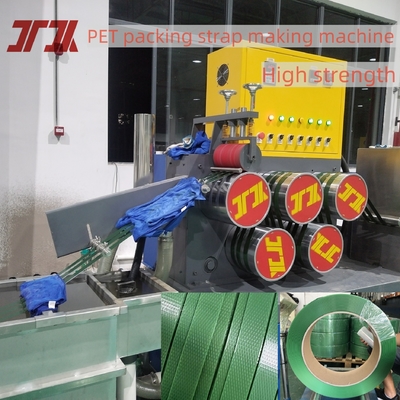

Single Screw PET Strap Production Line Packing Belt Extruder Machine With PLC Control System High Speed
PRODUCT DESCRIPTION
- PET has advantages ,such as good stiffness , high temperature resistant ,its specific gravity is 1/5 the one of steel.
- The width of the belt can be design as your requirement.
- PET packing belt is widely used in papermaking, wooden products, textile cotton and fiber ,color metal, canned products, chemical , metallurgy, power cable, aluminum.
PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Features of PET packing strap production line:
1. The extruder adopts PET special screw with unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of raw materials. It has large extrusion volume, good plasticization, high hardness and high wear resistance. Etc.
2. The three-dimensional folded super-large area filter device, the unfolded area of the filter screen is 30 times larger than that of the traditional flat filter screen; the filtering mesh number can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves the work efficiency.
3. The equipment adopts a unique two-stretching process, which has good rigidity and stable width, and improves the tensile strength of the finished product.
4. High-precision parts make the product molding quality stable, and the width and thickness fluctuations are far smaller than the national standard;
5. The unique oven circulation heating system adopts reciprocating winding method inside, making full use of thermal energy to greatly reduce power loss.
6. The unique circulating cooling system and multiple sets of shaping belt guide rollers make the packaging belt cooling and shrinking and shaping more fully, the product is more stable and the size is more accurate.
DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:

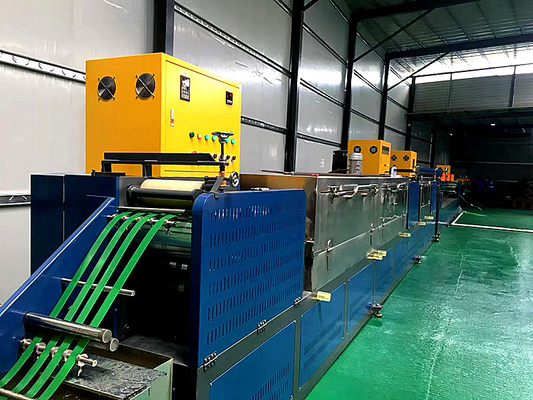

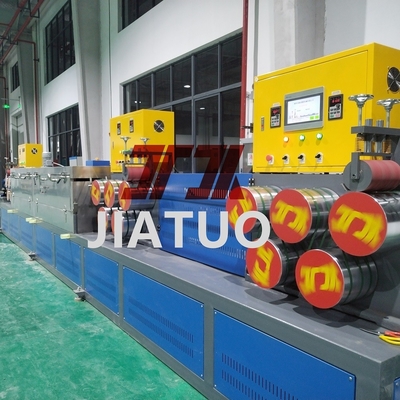

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
