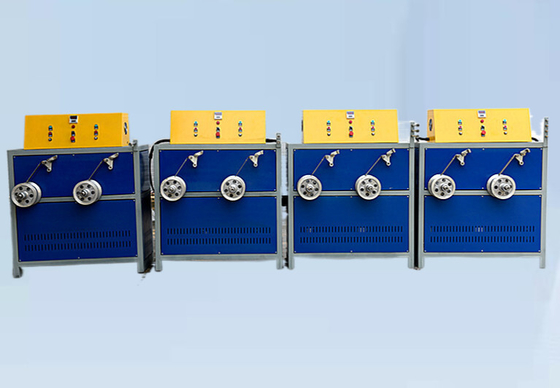

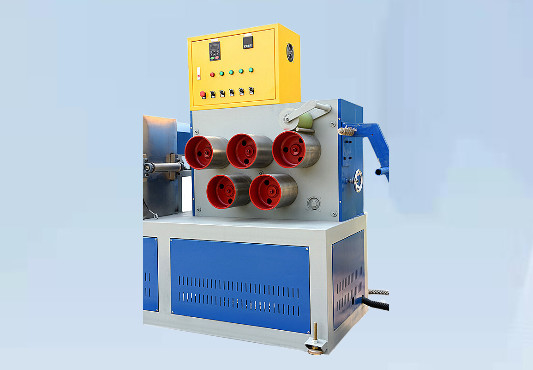

Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control

Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control
Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control

Large Image :  Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-WM001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 7~10working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 500 set/month
Contact Now

Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control

Description
Product Type: Full Automatic Strap Winder Core Components: PLC, Motor
Width Of Strap: 4-20 Mm Supply: Three -phase Four -wire AC Power
Keywords: PP Packing Strap Production Line Extrusion Machine Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas HS Code: 3920690000
Highlight:

Automatic PET Strap Winder PLC Control

,

1.5kw PET Strap Winder

,

1.5kw PLC strapping banding winder

PP/PET automatic strapping banding winders with PLC controlled

PRODUCT DESCRIPTION



PET and PP straps machine making are our factory main jobs. we have long time experience and also we are update the new technology every set of machine.

high tensile strength straps , precision in the size , ensure the straps can use with automatic packing tools.

Max winding diameter 500mm
Max winding width 220mm
Max winding line speed 280m/min
Motor power 1.5kw
Winding displacement motor power 750w


Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control 0
TECHNICAL SPECIFICATION

  • For the PET strap packing into a roll. The center automatically arranged winding. Consists of: closing reel, core, transmission unit, winding displacement unit, rack, electrical control parts, etc.
  • Torque arm directly separately checks the location and pneumatic plug to maintain the tension of straps.
  • Automatic computer control winding disk diameter and length of the winding.
  • Winding parameters, cable parameters can be set according to the product specifications by computer.
  • Servo motors are used to control the width and spacing of winding displacement.
  • Straps entrance with protection device.

Features of PET strap, PP strap Winder Machine


(1)Special twin screw extrusion technology and single screw extrusion technology can be choosing as per
customer needs.
(2) Process 100% recycled PET bottle flakes.
(3) Even plasticization and stable extrusion with PLC automatic control for the full line.
(4) As per different requirements, changing a coating materials for make strap have better and special function.
For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength
when welding strap.
(5) Melt filter with two pistons with air venting design and back flushing.
(6) Number of strap:1,2,4,6,Width: 9mm-20mm,Thickness: 0.6mm-1.5mm
(7)Workers: 2 -3 workers per shift, 12 hours/shift.

Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control 1


FAQ

(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.


(2).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.


(3).Q: How can I get the price, photos and video about the machine?
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.


(4).Q: Why choose us?
A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery more than 20 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.



Automatic Strapping Banding PET Strap Winder 1.5kw PLC Control 2
