PP Pet Strap Automatic Winder 9-25 mm PP PET belt Production equipment
PRODUCT DESCRIPTION
PET Strap Production Line PET Strapping Band Production Line PET Strap Band Making Machine PET Strap Making Machine
Automatic PLC Controlled Double-Position PP Strapping winder/PLC winding machine/ Double-Position PP Strapping Winder

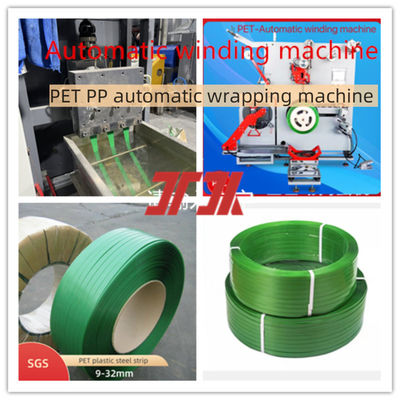

PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:
1. Efficient and Automated Production
Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.
Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.
Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
TECHNICAL SPECIFICATION

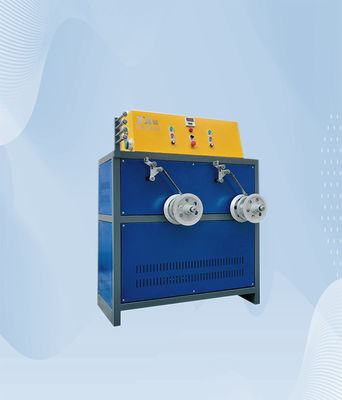

- For the PET strap packing into a roll. The center automatically arranged winding. Consists of: closing reel, core, transmission unit, winding displacement unit, rack, electrical control parts, etc.
- Torque arm directly separately checks the location and pneumatic plug to maintain the tension of straps.
- Automatic computer control winding disk diameter and length of the winding.
- Winding parameters, cable parameters can be set according to the product specifications by computer.
- Servo motors are used to control the width and spacing of winding displacement.
- Straps entrance with protection device.
Characters of PET strap, PP strap Winder Machine
1.semi type/full automatic type/change roller by hand/automatic cutting
2.PLC/touch screen
3.core size customized
4.servo motor control
5.can gear change
6.air cylider control

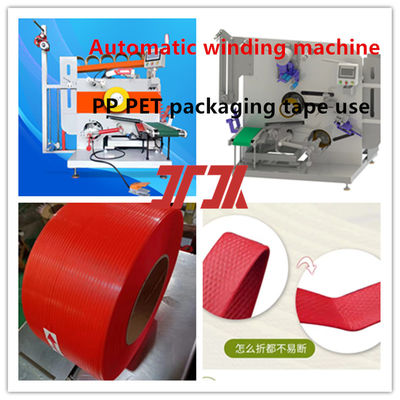

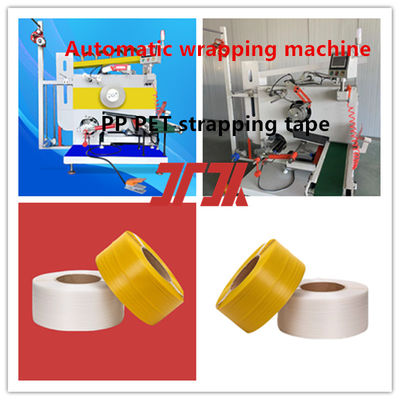

Automatic PP PET strapping bands winders by PLC controlled, pp pet strips winding machine

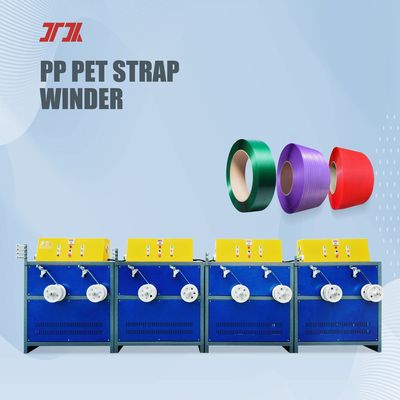

Double station pet pp strap winder machine/rope winding machine/doubling winders
ABOUT STRAP WINDER
Winder is available in mechanical system or PLC system. Conventional mechanical winder with fixed traverse cam involves change of gears ratio for laying of different strap size. The advanced PLC control winder capable for parameter management enable winding of different
strap sizes by simple input of strap specs.
Optionally with interchangeable mandrel and traverse guide, each unit is capable for winding of various strap gauge and every kind of bobbin core which ultimately giving an overall flexibility of the winder unit.
Traverse control for laying of different strap size.it is capable for winding of various strap gauge and every kind of bobbin core
