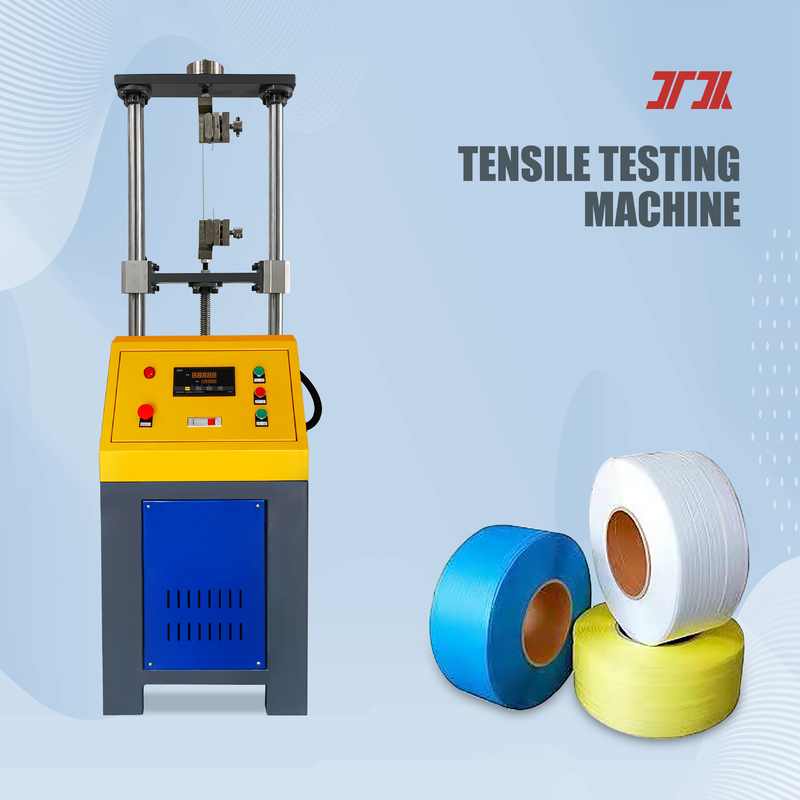

Rubber Elastic Modulus Utm Tensile Testing Machine Equipment 0.5% Accuracy
PRODUCT DESCRIPTION

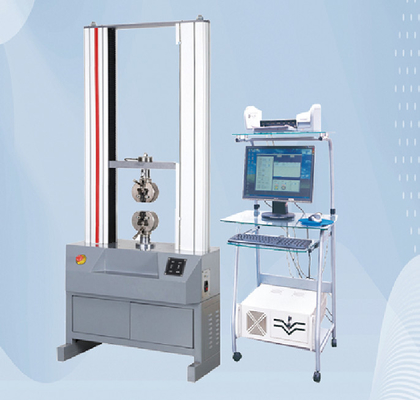

The 10kn 20kn Computer control electronic plastic tensile strength testing machine is suitable for metal materials, non-metal materials, composite materials, like metal wire, rebar, wood, cable, nylon, leather, tape, aluminum, alloy, paper, fiber, plastic, rubber, cardboard, yarn, spring etc..This tensile strength testing machine can be equipped with different clamps, then it can test the tensile strength, compression strength, bending strength, bonding strength, tearing strength, breaking strength, yield strength, elongation rate, elastic modulus and so on.
| Max load |
5KN,10KN, 20KN |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
|
| Effective testing width |
390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm
|
| Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety |
Electronic-limit protection |
| Testing platform moving device |
Fast /slow two speeds to control,can jog |
| Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%,automatic protection |
| fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm(length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V,50HZ, |
| Power |
0.4KW(depending on different demand of force, using different motor) |
| Machine weight |
(about)250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged. |
CHARACTER
Brief: It adopts full digital power, displacement and speed three closed loop control, using AC motor and control drive system, with Taiwan precision worm gear reducer and Taiwan TBI precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Function: Tester is used to test physical properties of elongation, compression, peeling, tearing bending, 3-point bending, shearing of metallic and non-metallic material and so on.
Meeting standards: It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.
Application ranges: This machine is commonly applied in material analysis in auto-parts, fastener, aerospace, cable and wire, plastic and rubber, paper packing industries.
Features of control and data processing system
1) With advanced chipping technology and professionally designed data gathering and amplifying system,the tester is highly integrated,reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity, elongation.The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material.
2) Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate,fixed tension, fixed tension increase rate.
3) Automatically resetting: After the test begins, measuring system automatically reset to zero.
4) Automatic shifting: automatically changes range when load changes to make sure precise collection of data.
5) Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving.
6) Batch testing: For specimen with same setting, batch test can be performed after setting the test sequence.
7) Display mode: data and curve are presented while testing.
8) Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative data at each point.
9) Curves: parameters: stress-strain, force-displac
ement, force-time, displacement-time results are displayed and printable.
10) Parameters: force parameters(g,kg,N,lb)
stress parameters(kg/mm2,N/mm2,Mpa,lbf/in2)
Displacement parameters (m,mm,in)
11) Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files
12) Safety protection : safety mechanism is triggered when overloading is above 2~10%
13) The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy.
