PE/PP Plastic Material Tensile/Bending/Elastic Modulus Testing Machine
PRODUCT DESCRIPTION

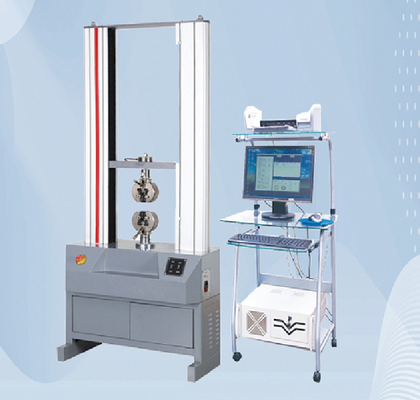

The 10kn 20kn Computer control electronic plastic tensile strength testing machine is suitable for metal materials, non-metal materials, composite materials, like metal wire, rebar, wood, cable, nylon, leather, tape, aluminum, alloy, paper, fiber, plastic, rubber, cardboard, yarn, spring etc..This tensile strength testing machine can be equipped with different clamps, then it can test the tensile strength, compression strength, bending strength, bonding strength, tearing strength, breaking strength, yield strength, elongation rate, elastic modulus and so on.
| Max load |
5KN,10KN, 20KN |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
|
| Effective testing width |
390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm
|
| Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety |
Electronic-limit protection |
| Testing platform moving device |
Fast /slow two speeds to control,can jog |
| Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%,automatic protection |
| fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm(length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V,50HZ, |
| Power |
0.4KW(depending on different demand of force, using different motor) |
| Machine weight |
(about)250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged. |
CHARACTER
Brief: It adopts full digital power, displacement and speed three closed loop control, using AC motor and control drive system, with Taiwan precision worm gear reducer and Taiwan TBI precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Function: Tester is used to test physical properties of elongation, compression, peeling, tearing bending, 3-point bending, shearing of metallic and non-metallic material and so on.
Meeting standards: It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.
Application ranges: This machine is commonly applied in material analysis in auto-parts, fastener, aerospace, cable and wire, plastic and rubber, paper packing industries.
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
Q:What is the different between Type-S and Type-W?
A:Type-S can test multistep experiment, hold loading,bending, yield strength, modulus of elasticity with import upgrade servo, but the Type-W can not do these tests.
