Product Details:
|
| Product Type: | PET Strap Making Production Line | Raw Material: | PET Raw Material Or 100% PET Bottle Flakes Recycled |
|---|---|---|---|
| Application: | Waste Paper, Steel Pipe, Steel Coil, Medical | Processing Type: | Extrusion Molding Machine |
| Machine Control: | PLC | Driven Type: | Electric |
| Feeding Mode: | One Feed | Automation: | Automatic |
| Function: | High Effieciency | After-sales Service Provided: | Video Technical Support, Online Support |
| Warranty: | 1 Year | ||
| Highlight: | 3pcs PET Strap Extrusion Line,Single Screw PET Strap Extrusion Line,3pcs pet Strapping Roll Manufacturing Machine |
||

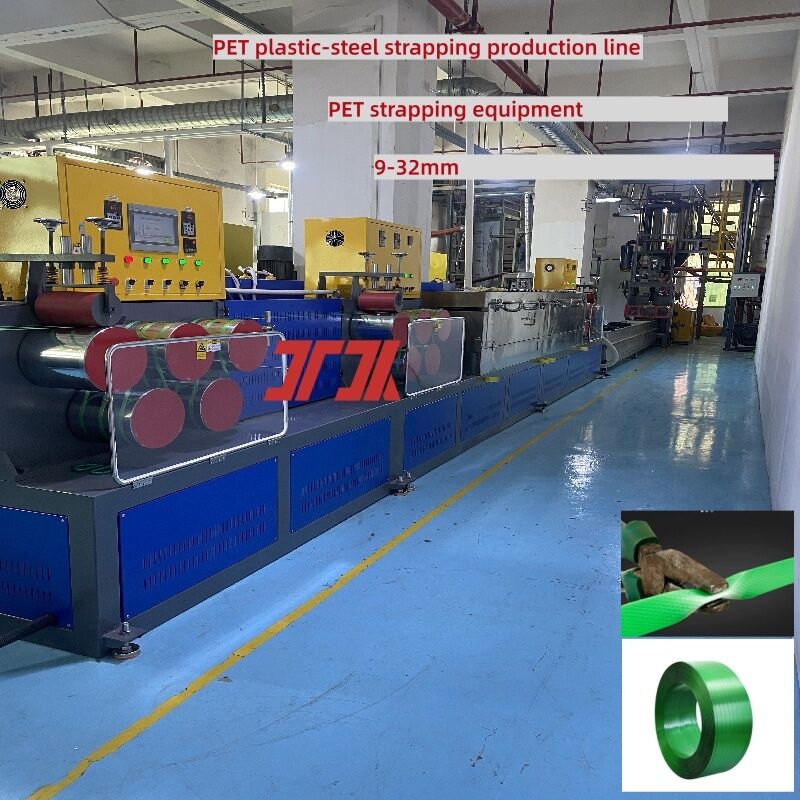

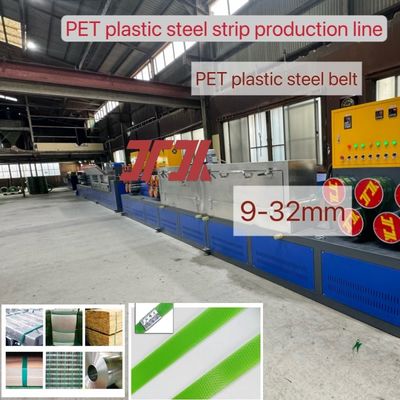

High speed single screw 3 straps PET Strap Making Machine Extrusion Production Line
PRODUCT DESCRIPTION
Jiatuo Plastic Mechinery Co.,Ltd is the professional manufacturer of PET PP strap extrusion line. We could meet high quality strap production and high capacity request from customers.
Character:
It use single screw extruder system
For PET strap production, It use 100% recycling material
Measurement pump ensure constant and stable production
Two pull four station filter can efficiently eliminate impurity
Large hauling force stretch device and insulation oven

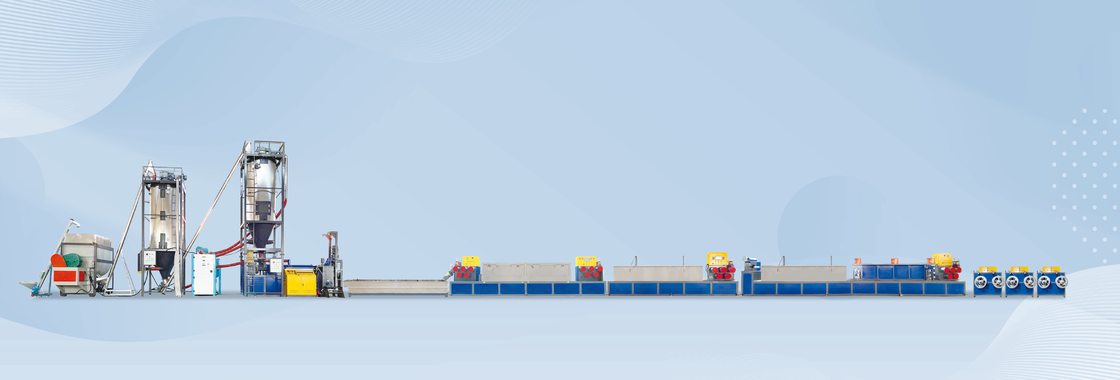

PET Strap Production Line Machine List
| Item | Quantity |

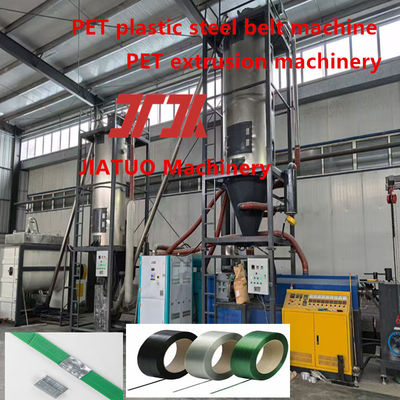

| 1.Lifting mixing drying system and screw feeding system | 1 set |
| 2.450 type dehumidifier and drying crystallization tank | 1 set |

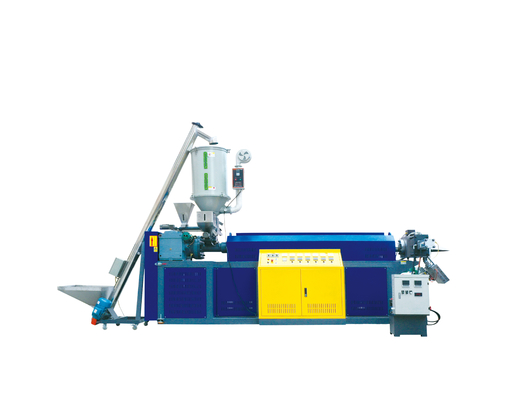

| 3. single screw extruder | 1 set |
| 4.high-power screen changer | 1 set |
| 5.metering pump with independent speed regulation system | 1 set |
| 6.Special mould for PET strap band | 1 set |
| 7.Cooling water tank | 1 set |
| 8.The first five-roller tractor | 1 set |
| 9.Stretching oven | 1 set |
| 10.The second five-roller tractor | 1 set |
| 11.Embossing machine | 1 set |
| 12.The third five-roller tractor | 1 set |
| 13.Cooling sizing system | 1 set |
| 14.The fourth three-roller tractor | 1 set |
| 15.Single station semi-automatic winding machine | 1 set |
PET and PP strap making machine introduction
As PET is easy to absorb moisture in the air, it must be fully dried. At the same time, in order to prevent bonding during drying, crystallization equipment needs to be configured. PP strap not need it.
Always PET two straps extrusion needs 90/30 single screw extruder.
PP two straps extrusion needs 75/30 single screw extruder.
Special design screw structurer could extrude PET PP materials smoothl,it does not create excessive shear molecular structure, and ensures the strength of the packing belt
It is controlled by PLC pressure closed loop control system. The pressure sensor will transmit signals, and PLC is used to control the speed of melt pump and extruder, so as to stabilize the extrusion of PET or PP materials
PET is Length 4000mm, PP 2000mm.
It is stainless steel materials.
The water is heated by water tank heating unit
The haul off rollers is five rollers, working to take PET or PP strap materials out of water tank
The oven is heated by electric power. Heating air is spread evenly by fans.
In the oven, the PET and PP strap will be stretched first time.
This device is working for PET strap second time stretching.
PP strap not need stretching.
This 38Crmoal materials, high surface hardness rollers do embossing
As PET and PP materials has high deformation prestress after stretching. It has to do annealing and water cooling to fix the size.
It is working to take the materials out of annealing oven and cooling tank before winders

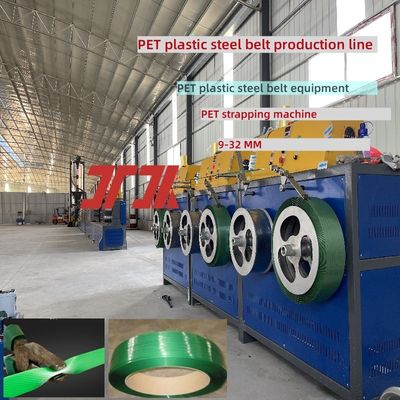

The winder could be designed into servo motor unit, inverter motor unit and torque motor according PET or PP materials.
The unique back tooth shaft is used to make the packing belts neatly arranged without overlapping and no horn shape, so that the packing belts maintain a good straightness, which is more suitable for the use of automatic packing machines, and ensures that the automatic equipment conveyor belts are in place. Do not drop the belt.
