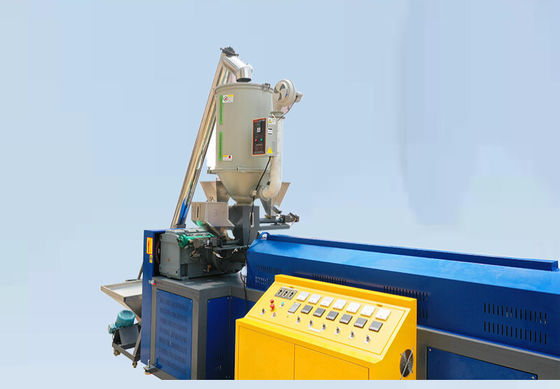

5-19mm width 100KW PP Strap Band Extrusion Line with non-stop screen changer

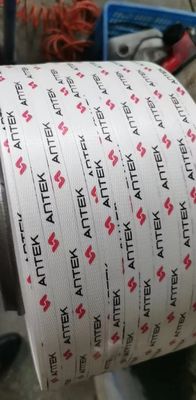

What is PP strapping?
PP strapping (short for polypropylene strapping) is a lightweight, cost-effective plastic band for bundling and securing light-to-medium duty goods in logistics, warehousing, and manufacturing.
Production description of PP strap making machine
The Polypropylene Strap Making Machine is equipped with a single or double screw extruder, depending on the needs of the customer. This extruder is designed to melt and mix the raw materials, which can either be PP recycled material or polypropylene, to produce the straps. The straps produced by this plastic strap production machine are durable, strong, and have excellent tensile strength.
Materials: PP material, or 100% recycling pp flakes and granules.
Application: This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.
Specification of PP packing belt making machine
| 1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
| 2 |
Product |
PP strap (1 mould for 2 straps) |
| 3 |
Capacity |
100-120kg/h |
| 4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
2person/shift |
| 8 |
Workshop required |
L (30m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches |
Fotek |
| 13 |
Motor power |
GUGAO |

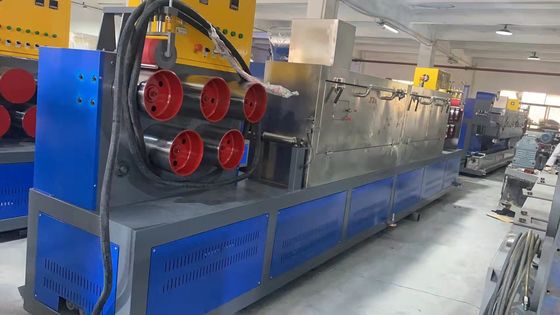

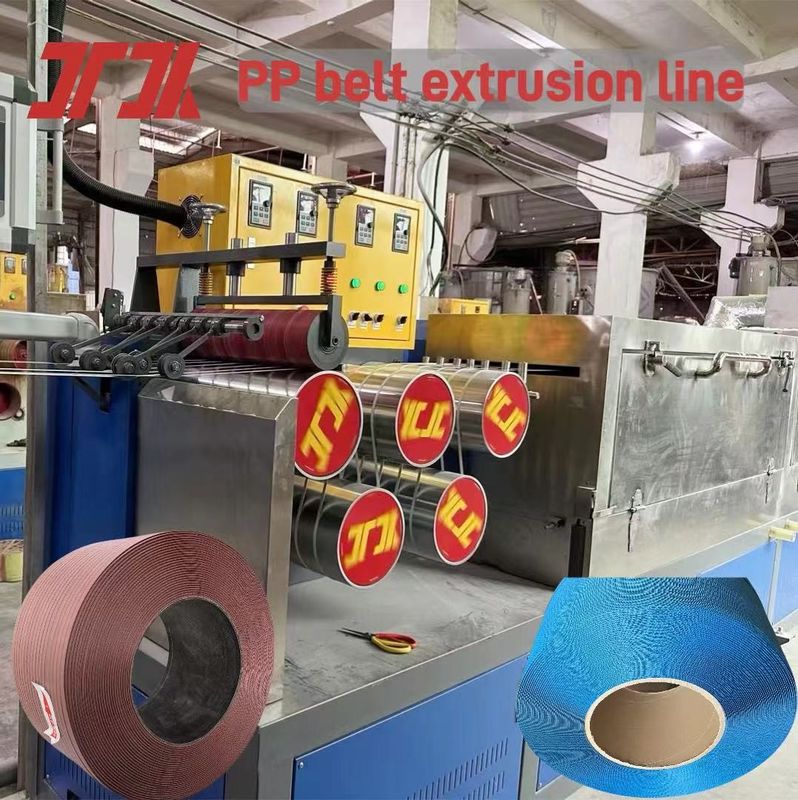

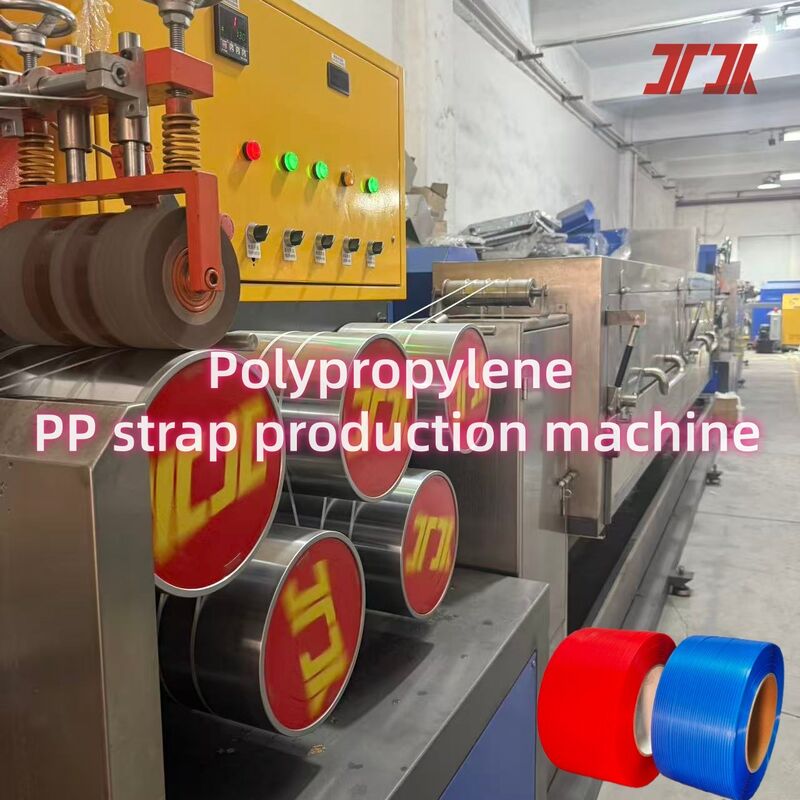

Parts of PP strap production line
1. Extrusion part
specially designed screw and barrel for pp material
2. Mould
----mould design can be 2/4/6/8/10/12/24straps output
3. Cooling water tank
----Using 304 stainless steel
----the constant temperature water tank provides stable temperature control, significantly improving the quality of the finished strapping.
4. Haul-off machine
---synchronization PLC control system
5. stretch oven and setting oven
The use of a constant-temperature, sealed oven significantly reduces electricity costs.
6. winding machine
We have 2 kind of winding machine for your choose.
Torque-controlled semi-automatic winding machine
Servo-driven fully automatic winding machine
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
