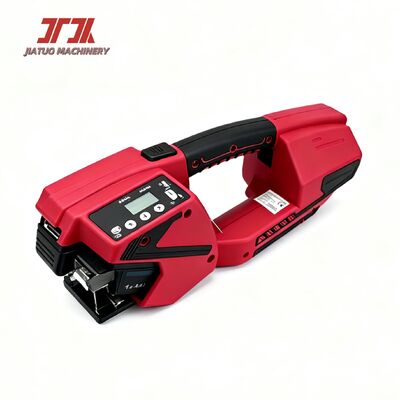

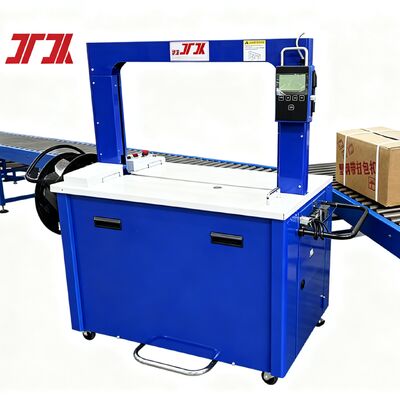

Semi-automatic Strapping Machine Automatic Strapping Machine for use with PP strapping

Semi-automatic Strapping Machine  Automatic Strapping Machine for use with PP strapping

DESCRIPTION OF STRAPPING PACKING MACHINE

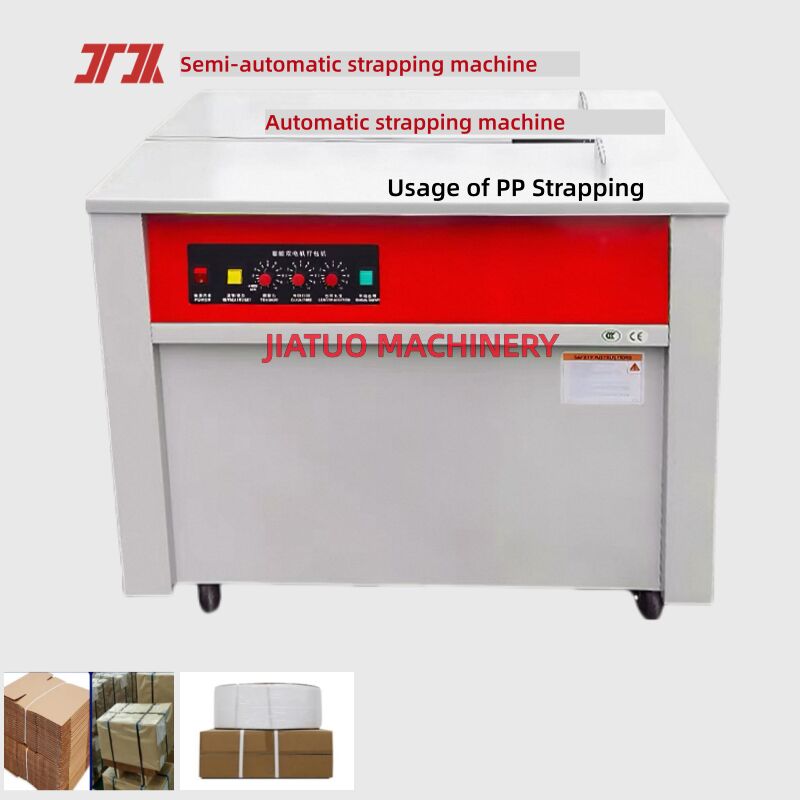

Semi-Automatic Strapping Machine:
Specifically, manual intervention is required to perform the following steps:
Wrap the strapping band around the package or carton.
Insert the leading end of the band into the machine.
Upon completion of the strapping process, manually remove the strapped package.
The machine automatically performs the following functions:
Tensioning the strapping band.
Sealing the two ends of the band via heat fusion.
Cutting the strapping band.

Cycle Time	2 sec./strap
Tension Range	3~40kgs
Strap Width	5,6,9,12,15.5mm adjustable
Sealing Method	Heating element
Reel Inside Diameter	200,230,280mm specified
Power Supply	100/110/220/230/240V 50/60HZ, 1PH
Table Height	750~830mm adjustable
Power Consumption	0.4kw
Machine Dimension (L x W x H mm)	L845 x W430 x H750
Machine Weight (50%,100%,150%,200%)	65kgs



Features of the semi-automatic strapping machine for PET strap:


Core Working Principle

The workflow of a semi-automatic strapping machine can be summarized as follows:

1. Threading----- The operator threads the strapping tape around the box and feeds the front end of the tape into the machine's inlet.

2. Sensor Start------- The machine automatically starts (or the operator presses a button) upon sensing the insertion of the strapping tape.

3. Tapering and Tightening------ The machine's motor drives the take-up reel, pulling the strapping tape back to securely wrap the package. The tension can be adjusted as needed.

4. Hot Melt Bonding----- When the tension reaches the preset value, the machine's hot melt head moves to the overlapping portion of the strapping tape (usually the top and bottom layers), heating and melting it.

5. Laminating and Cutting-----The hot melt head applies pressure while heating, firmly pressing the two ends of the melted tape together to form a secure joint. The cutter then quickly removes any excess belt.

6. Reset------ After bonding and cutting, the hot melt head resets, returning the machine to standby mode, ready for the next operation.

Regarding services:

Pre-sales:

1. Understanding of strapping products and recommendation of suitable models

2. Recommendation of suitable PP strapping specifications

3. Operating instructions

After-sales:

1. User training

2. Troubleshooting and maintenance

3. Adjustment for different widths of PP strapping

4. Regular system maintenance

FAQ:

Q: Can the size of the strapping machine be customized?

Yes, it can be customized according to requirements, but the delivery time will be longer.

Q: Does the semi-automatic strapping machine have after-sales service?

A: We are a manufacturing plant with our own engineering and after-sales teams.

Q: What is the voltage of the semi-automatic strapping machine?

A: Single phase: 220V/60HZ.

Q: What are the packaging methods for the semi-automatic strapping machine?

A: The semi-automatic strapping machine uses export wooden crates or standard export cartons for strapping.

Q: What packaging materials are suitable for the semi-automatic strapping machine?

A: PP strapping, width: 5-15mm (optional).

Q: What are the payment methods for the semi-automatic strapping machine?

A: We support: Wire Transfer (TT), negotiable.
