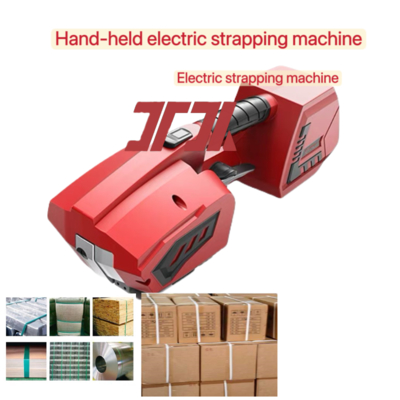

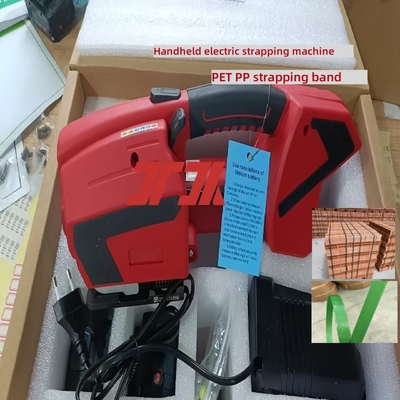

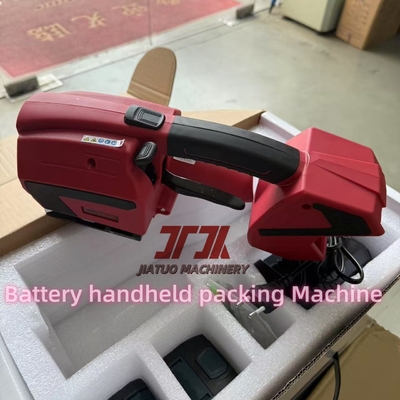

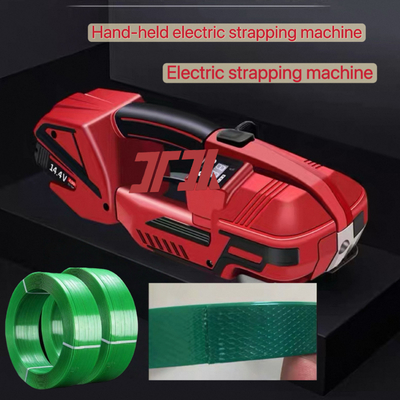

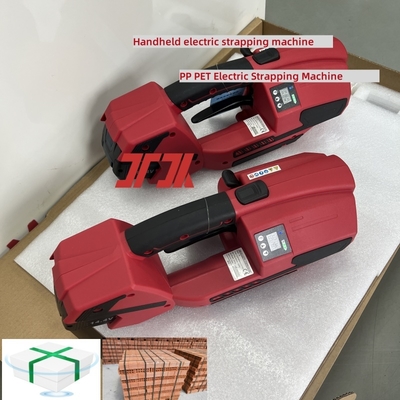

Handheld electric strapping machine Automatic strapping and tightening tool for PP and PET straps
INTRODUCTION OF HANDHELD ELECTRIC STRAPPING MACHINE
Handheld electric strapping machines
Electric Strapping Tool
An electric strapping tool, also known as an electric strapping tool, is an automated, electrically powered tool that quickly tightens, secures, and cuts strapping straps (such as PP straps, PET straps, or steel straps). It is widely used in industries such as logistics, warehousing, manufacturing, and construction. Compared to manual or pneumatic strapping tools, it offers greater efficiency and lowers labor consumption, making it suitable for medium- to high-strength strapping.
CORE STRAPPING FUNCTIONS
(1) Automatic tensioning
The motor drives the strapping strap (PP/PET/steel strap) to automatically tighten to the set tension to ensure the cargo is secure.
The tension can be adjusted (e.g. 50kg~200kg) to accommodate different loads (e.g. cartons vs. steel pipes).
(2) Locking and fixing
Hot-melt bonding (plastic strap): Through high-temperature friction welding, the strap joints are seamlessly bonded.
Metal buckle locking (steel strap): Automatically crimp the metal buckle, suitable for heavy strapping (e.g. steel, wood).
(3) Automatic cutting
After strapping is completed, the built-in cutter immediately cuts off the excess strap, and the cut is smooth, without the need for secondary trimming.
DETAILED PARMETERS
| Name |
Handheld electric strapping machine |
| Model |
JT-D16 |
| Applicable strapping |
PP, PET strap |
| Applicable width |
13-16mm |
| Applicable thickness |
0.4-1.2mm |
| Battery capacity |
4.0Ah 5/60hz 57.6wh |
| Tension speed |
100-200mm/s |
| Sealing method |
friction welding |
| Tensile force |
900-3200N |
| Machine size |
L380XW130XH130mm |
| Weight |
3.1KG |
CORE STRUCTURE
Main Body------Contains the motor, control circuitry, transmission mechanism, and friction bonding.
Tightening Mechanism------Automatically tightens the strapping and maintains tension, ensuring high bond strength and preventing it from falling off.
Locking Device------ Secures the strapping material using friction welding or metal buckles.
Cutter------ Automatically cuts off excess strapping material after bundling.
Battery Compartment------ Removable lithium battery (common voltages 12V-24V).
Guide Slot------Guides the strapping material for proper insertion.
Applicable Applications
Logistics and Transportation------- Securing cartons, pallets, and packages.
Construction------- Bundling steel pipes, rebar, and aluminum.
Manufacturing------ Packaging parts, wiring harnesses, and sheet metal.
Waste Recycling-------- Compressing and bundling waste paper, plastic, and metal scrap.
FAQ:
Q: Can the handheld electric strapping machine be shipped by air?
A: Yes, we can. We provide all test reports.
Q: What products are suitable for the handheld electric strapping machine?
A: PP, PET strapping, Width: 13-25mm,plastic-steel strapping, etc.
Q: What is the voltage of the handheld electric strapping machine?
A: 220V, customizable.
Q: What is the bonding method of the handheld electric strapping machine?
A: Friction bonding.
Q: What is the warranty period for the handheld electric strapping machine?
A: 12 months.
Q: Can the color of the handheld electric strapping machine be customized?
A: Customizable in bulk quantities.
