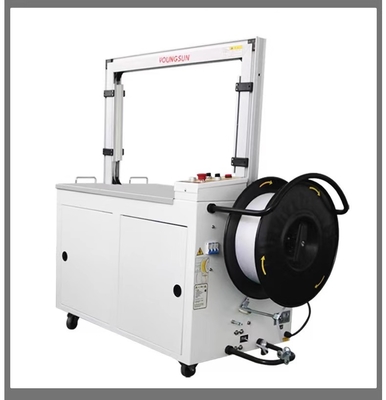

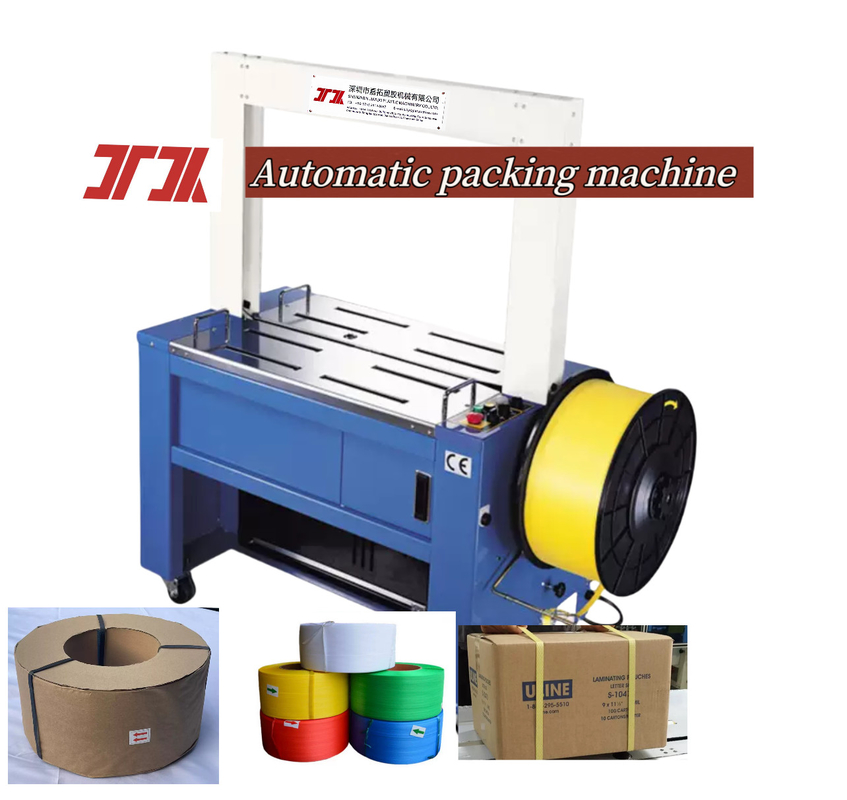

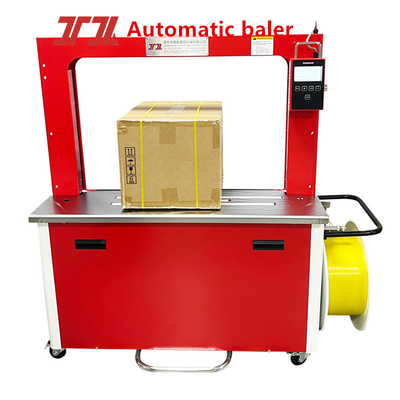

Packaging machinery Desktop baler Fully automatic strapping machine 2.0 seconds/strip
The automatic strapping machine is an efficient packaging tool with fast speed, suitable for a wide range of products, and can firmly fix various products.
1. Automatic strapping: Fully automatic strapping machine, no manual strapping required, high working efficiency, can reduce manual operation and reduce labor costs.
2. Low failure rate: Automatic strapping machine has excellent strapping force, few failures and convenient maintenance.
3. Suitable for a wide range of products: Automatic strapping machine can be used for PP plastic straps, width: 5-19mm can be used.
4. Hot melt bonding: The working principle of the fully automatic strapping machine is to complete the packaging through tensioning, heat capacity, cutting and bonding.
5. Suitable for bandwidth: 8-15mm
Technical parameters:
1. Power supply: 380V 50HZ/60HZ 1.0 KW
2. Packing speed: ≤2.0 seconds/lane
3. Work surface height: 750mm
4. Panel bearing capacity: 80KG
5. Binding force: 0-60KG adjustable
6. Frame size: width 800*height 600 (customizable)
7. Binding method: manual operation of bundling, methods include: inching, foot switch, continuous beating, etc. (optional)
8. Hot bonding method: bottom bonding, bonding surface >=90%, bonding position deviation ≤2mm
9. Applicable strapping tape specifications: width 9~15 thickness: 0.55~1.0mm (optional)
10. Machine weight: 220KG
11. Wooden box size: L1.58*W0.8*H1.6 m
Technical Parameters of Automatic strapping machine:
| Name |
Semi-Automatic Bundling Machine |
| Voltage |
110/220V-1PH |
| Bale speed |
2 Seconds/strip |
| Motor automatic power outage device |
Yes |
| Strap Thickness |
0.4-1.2mm |
| Strap Width |
9-18mm |
| Machine Size |
L1580*W800*H1600mm |
| Warranty |
1 Year |
| Working mode |
Automatic Tape Conveyor |
| Tightening force |
0-80KGS |
|
Standard frame size
|
W800*H600 Customize on request
|
|
Machine weight
|
220kg |
Installation Instructions :
1.Flip-top panel, easy maintenance.
2.New electric heating device, fast heating and long life.
3.PLC chip electronic control, complete functions and easy operation.
4.Optional automatic tape feeding device, inching tape feeding, induction tape feeding mode.
Support and Services of Automatic strapping machine :
Technical Support and Service for Box Strapping Machine
- Troubleshooting and diagnosing technical problems
- Providing installation and setup guidance
- Providing maintenance and repair services
- Providing training and user manual
- Answering questions and providing product information
We also provide customer service and repair services, including:
- Replacement of defective parts
- Repair of malfunctioning devices
- Assistance with warranty claims
- Assistance with returns and refunds
Packing and Shipping of automatic strapping machine :
Packaging and Shipping for Box Strapping Machine
The box strapping machine is packaged in a neat box with thick foam protecting the product from any impact or vibration during shipping.
We have multiple shipping methods to choose from, including air freight, express delivery, sea freight, and others. All our shipments are insured and tracked. Please contact us for more information.
