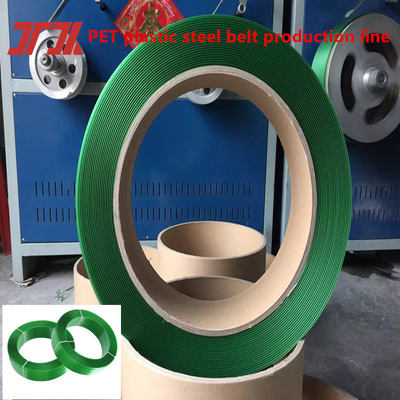

Plastic strapping tape PET plastic steel strapping tape with 9-32mm width
Product Introduction of PET plastic steel strapping tape:
PET plastic steel strapping belt is produced by a new type of PET strapping machine using domestic advanced technology. PET plastic steel strapping belt purchases mineral water bottles, Sprite bottles, etc. as raw materials. At present, PET plastic steel strapping belt has been widely used in papermaking, steel, chemical fiber, cotton, printing, wood and other industries.

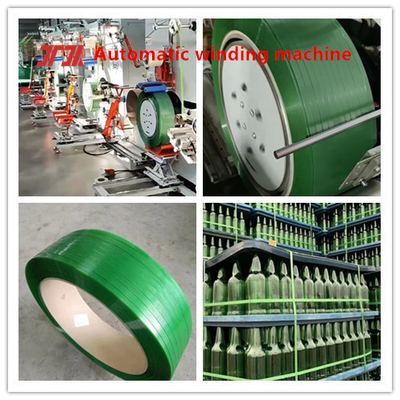

*Metering extrusion system------The metering extrusion system makes the flow channel extrusion more uniform, so that the width of the PET plastic steel belt remains consistent,50CC-100CC.
*Screen changer--------The three-dimensional foldable large-area filter device has an unfolded filter area that is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.The filtration area can reach 3.5 square meters.
*Dehumidifier--------The rotary honeycomb dehumidification and drying system is used to dry the raw materials. The dew point of -50ºC ensures that the moisture content of the raw materials is ≤50PPM, and also has the effect of solid phase polycondensation and viscosity increase.1000-2000 dehumidification air volume.
*PLC control system--------The machine adopts PLC control, parameter setting, data and the feedback and alarm automation.
Features of PET plastic steel belt:
This hot melt adhesive PET plastic steel strap bonds seamlessly through electric heating, friction, and hot melt techniques, making it ideal for diverse strapping tools:
1. Handheld Strapping Machine
2. Pneumatic Strapping Machine
3. Manual Iron Buckle Strapping Machine
4. Automatic Strapping Machine

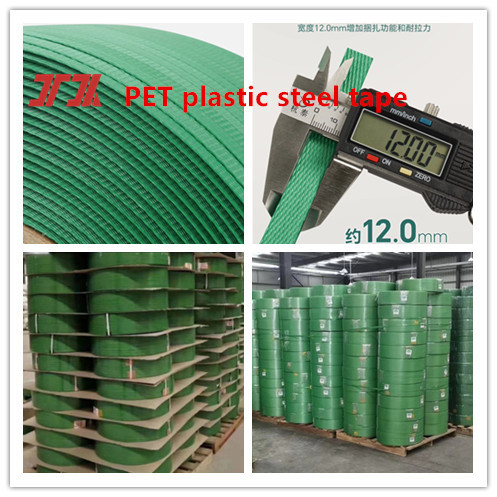

Technical Parameters of PET plastic steel belt:
| model |
width |
thickness |
pull |
gross weight |
net weight |
net weight |
length |
| PET-0950 |
9.0mm |
0.50mm |
>150kg |
20kg |
18.5kg |
200/406mm |
3400m |
| PET-1050 |
10.0mm |
0.50mm |
>180kg |
20kg |
18.5kg |
200/406mm |
2720m |
| PET-1250 |
12.0mm |
0.50mm |
>210kg |
20kg |
18.5kg |
200/406mm |
2500m |
| PET-1260 |
12.0mm |
0.60mm |
>220kg |
20kg |
18.5kg |
200/406mm |
2300m |
| PET-1360 |
13.0mm |
0.60mm |
>250kg |
20kg |
18.5kg |
200/406mm |
1850m |
| PET-1560 |
15.0mm |
0.60mm |
>280kg |
20kg |
18.5kg |
200/406mm |
1580m |
| PET-1580 |
15.0mm |
0.80mm |
>300kg |
20kg |
18.5kg |
200/406mm |
1200m |
| PET-1660 |
16.0mm |
0.60mm |
>320kg |
20kg |
18.5kg |
200/406mm |
1480m |
| PET-1670 |
16.0mm |
0.70mm |
>370kg |
20kg |
18.5kg |
200/406mm |
1270m |
| PET-1680 |
16.0mm |
0.80mm |
>450kg |
20kg |
18.5kg |
200/406mm |
1080m |
| PET-1610 |
16.0mm |
1.00mm |
>520kg |
20kg |
18.5kg |
200/406mm |
970m |
| PET-1970 |
19.0mm |
0.70mm |
>500kg |
20kg |
18.5kg |
200/406mm |
1020m |
| PET-1910 |
19.0mm |
1.00mm |
>700kg |
20kg |
18.5kg |
200/406mm |
740m |
| PET-1912 |
19.0mm |
1.20mm |
>850kg |
20kg |
18.5kg |
200/406mm |
660m |
FAQ:
1. Does PET plastic steel come with a test report?
Yes, we provide SGS reports.
2. Is PET plastic steel belt environmentally friendly packing belt?
Yes.
3. Can the specifications of PET plastic steel belt be customized?
It's okay.
4. What are the specifications of PET plastic steel belt?
9-32mm
5. MOQ about PET plastic steel strip?
50 roll
