JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity

JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity
JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity

Large Image :  JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-Rattan
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity

Description
Product Type: Plastic Imitation Rattan Production Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Processing Type: Extruding Machine Screw Design: Single Screw
Voltage: 220V/380V/415V Power: 22KW
Driven Type: Electric Plastic Processed: PP, PE
Application: Packaging Strap Automation: Automatic
Warranty: 1 Year

Plastic Imitation Rattan Production Line/PP PE Multicolor Rattan Making Machine



PRODUCT DESCRIPTION

Artificial rattan machine, Plastic Rattan Extrusion line, PP/PE rattan extrusion machine,Artificial rattan making machine,
plastic rattan making machine, plastic rattan machine, Artificial rattan machine, plastic rattan machinery,PP/PE rattan machine,
Artificial rattan machine for furniture, rattan machine, PE/PP rattan making machine, imitated rattan extrusion machine,
plastic rattan extruding machine, plastic rattan extruder,artificial rattan extrusion machine,plastic rattan extrusion line.
Model No. Screw Size No. of strap Capacity Total Power Width Range Thickness Range Installation Dimensions
JTPP-90 2800mm 2 100kg/h 80kw 5-19mm 0.4-1.2mm 30*2.0*4.0M
JTPP-100 2800mm 3 150kg/h 90kw 5-19mm 0.4-1.2mm 30*2.2*4.0M
JTPP-110 3300mm 4 200kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M
JTPP-110 3300mm 6 130kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M



JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity 0

Plastic Strapping

Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.

Polypropylene Strapping

Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length

JTPP-110 Plastic Imitation Rattan Making Machine: 3300mm Screw, 6 Straps, 130kg/h Capacity 1



Material used:
PE or PP recycled or virgin granules material.

Specifications:

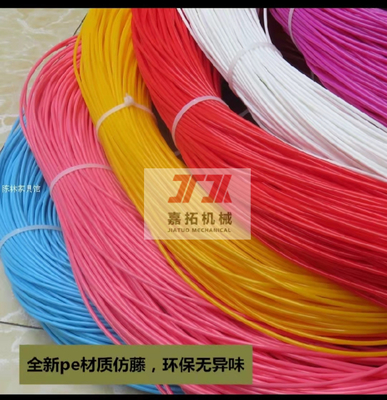

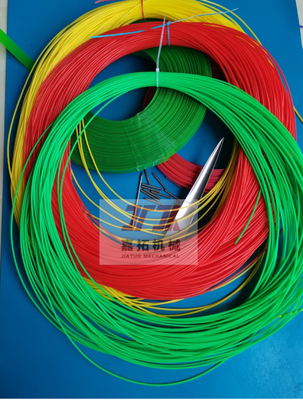

Plastic rattan extrusion line can produce single or multicolor plastic rattan equipped with one or more extruders, and also different
shape rattan can be produced if different extrusion moulds are used.

Application:

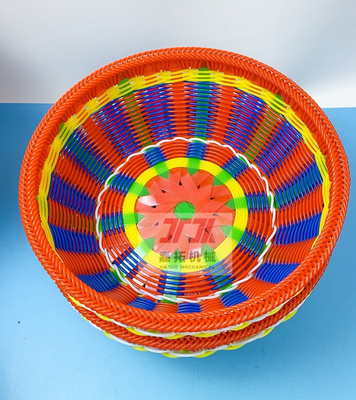

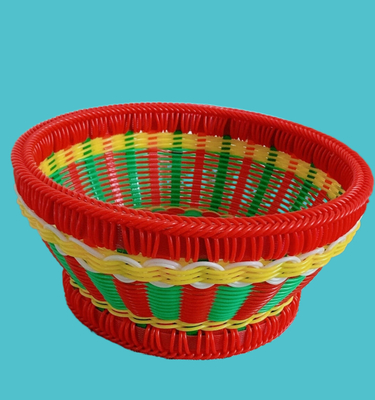

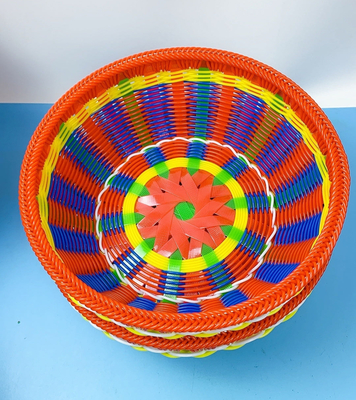

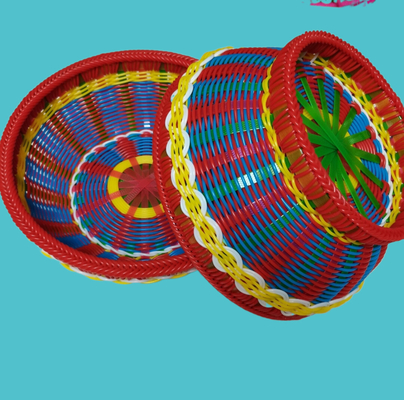

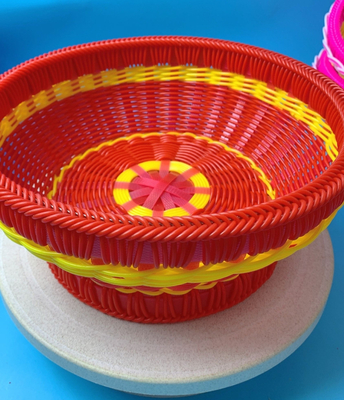

Plastic rattan is widely used on rattan chair, tea table, flower basket, weaving art and craft, furniture,etc. Preferring different raw
material such as PE, PP,PVC etc, the extrusion line can produce plastic resembling rattan with differing texture.

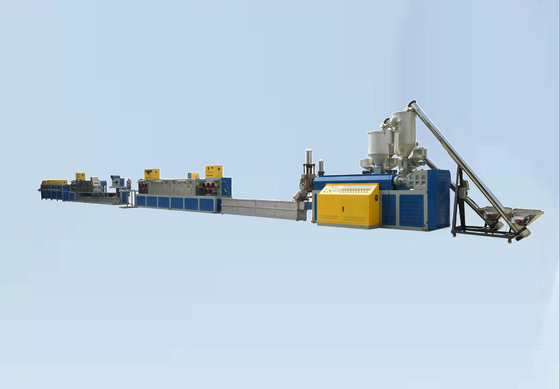

mainly consisted of artificial rattan extrusion line:

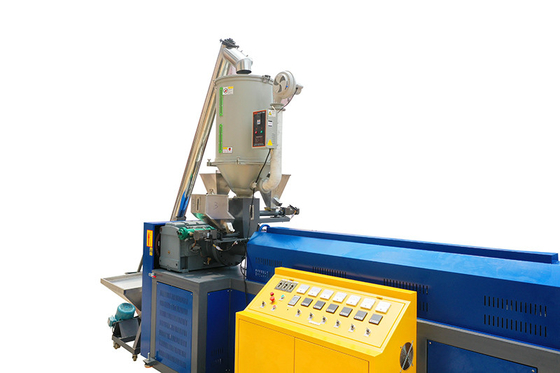

1. Main extruder: one set
2. Sub-extruder: two sets
3. Tricolor co-extrusion mould: one set
4. Water cooling trough: one set
5. Haul off unit: one set.
6. Embossing roller: two sets
7. Rattan teaseling machine: one set
8. Automatic coiling machine: one set.
Optional auxilairy machine: automatic feeder,hopper dryer,plastic mixer and plastic crusher.
