PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material

PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material
PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material

Large Image :  PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPP-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Contact Now

PP Strap Making Machine for 0.4-1.2mm Strap with Recycle/New Raw Material

Description
Plastic Processed: PP Strap Color: Red/Green/Black/Yellow
Trademark: JiaTuo China Applicable Raw Materials: Recycled Material And Polypropylene
Warranty: 1 Year Name: PP Strap Making Machine
Motor: Siemens Strap Material: PP Recycle Material/New Raw Material
Capacity: 50-100kg/h Control System: PLC
Cooling Method: Air Cooling Extruder: Single Screw
Heating Power: 12KW Material: PP
Motor Power: 15KW Product Name: PP Strap Band Extrusion Line
Screw Diameter: 75mm Screw L/D Ratio: 30:1
Screw Speed: 0-100rpm Strap Tension: Adjustable
Strap Thickness: 0.3-1.2mm Strap Width: 5-19mm
Weight: 3000kg

Agricultural PP Strap Band Extruder Making Machine Single Double Screw



PP Agricultural Packing Belt Production Line Single/Double Screw 120-900kgs/H Sandwich Belt



Product Description



PP strapping band making machine adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production,

extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable,

the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.



Compositions



PP belt production line

1 Vacuum feeder
2 Hopper dryer
3 Feeding machine
4 ¢100 Extruding Machine
5 Automatic Screen filter changer
6 Mould(1 mould for 3 output)
7 Water cooling tank system
8 The first haul-off device
9 Stretching oven
10 The second haul-off device
11 PLC electrical control system
12 Embossing machine
13 Forming oven
14 Cooling system
15 The third haul-off device
16 Double disk winder



Agricultural PP Strap Band Extruder Making Machine Single Double Screw 0



Main Features



PP belt making machine

  • Fully automatic manipulator winding machine, which can realize automatic cutting, automatic unloading, automatic roll change,
  • And accompanied by meter or weight counting functions, which saves labor and greatly improves production efficiency.

Our Machine Features



The machine can produce different size of plastic splitfilm yarn for industry and agricultural banding twine,the yarn is applicable to pack all kinds of plastic bag,clothing,shoes and toy,and also for plastic rope.

  1. Take up small area.
  2. Simple operation.
  3. High output.
  4. Easy to maintain.

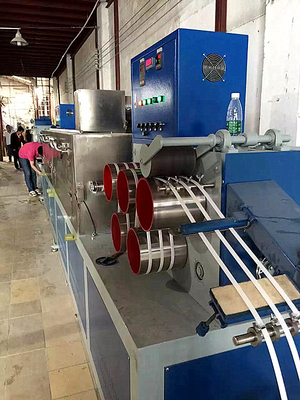

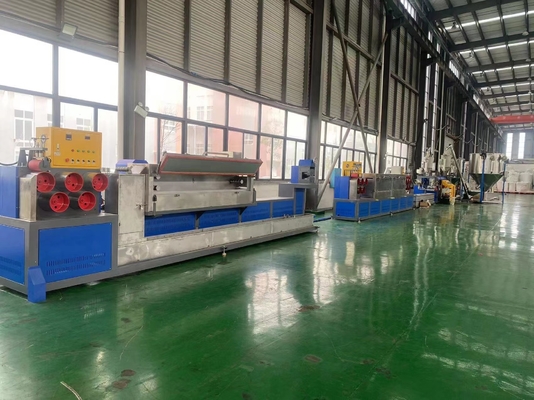

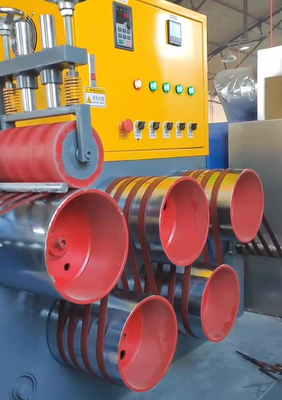

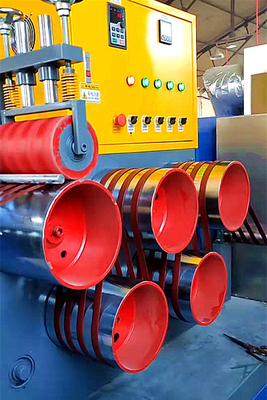

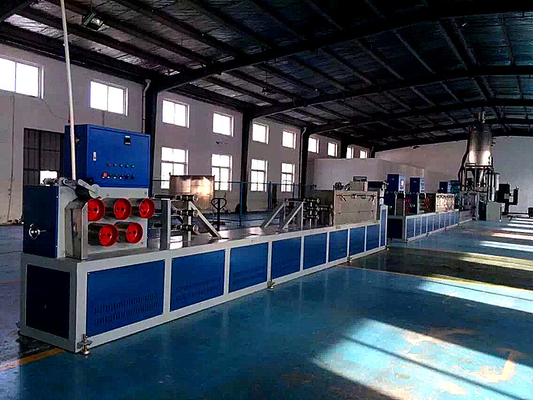

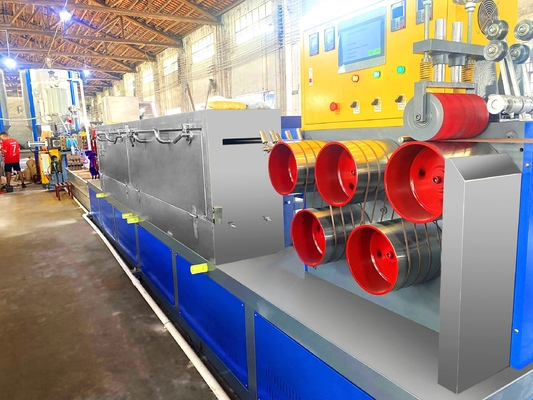

Detailed images



PP strapping production line

Agricultural PP Strap Band Extruder Making Machine Single Double Screw 1Agricultural PP Strap Band Extruder Making Machine Single Double Screw 2Agricultural PP Strap Band Extruder Making Machine Single Double Screw 3



Our service system



PRE-SALE

a. Detailed machine introduction;

b. Suggest suitable turnkey solution as per clients requirements;

c. Provide test production for reference;


IN PRODUCTION

a. Supply layout drawing to clients for preparation;

b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;

c. Keep the clients be informed of the production status;


AFTER SALE

a. Send engineers to overseas for installation ,commissioning and training;

b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;

c. Offer help if any need from clients like spare parts need etc;

d. Supply necessary technical support at request;
