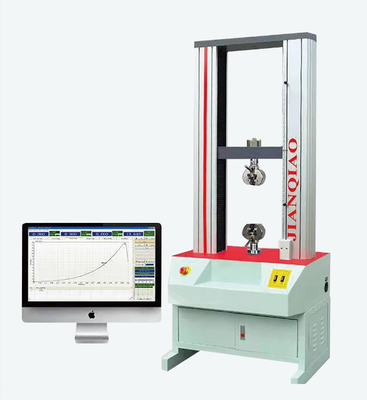

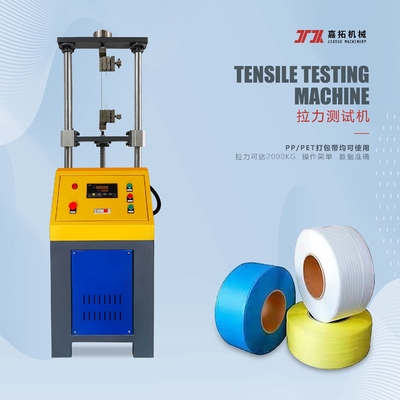

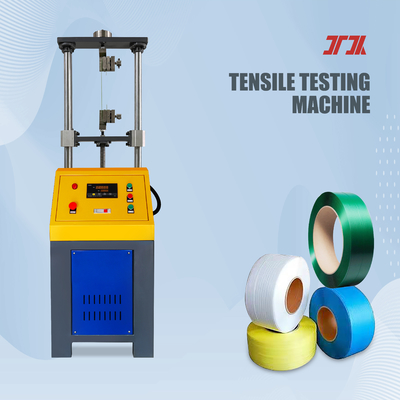

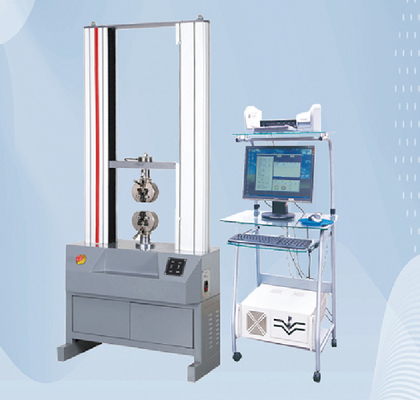

Auto Electronic Strength Tester PET Strap/PP Strap Tensile Testing Machine
PRODUCT DESCRIPTION
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
| Max load |
5KN,10KN, 20KN |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
|
| Effective testing width |
390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm
|
| Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety |
Electronic-limit protection |
| Testing platform moving device |
Fast /slow two speeds to control,can jog |
| Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%,automatic protection |
| fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm(length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V,50HZ, |
| Power |
0.4KW(depending on different demand of force, using different motor) |
| Machine weight |
(about)250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged. |
APPLICATION
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
