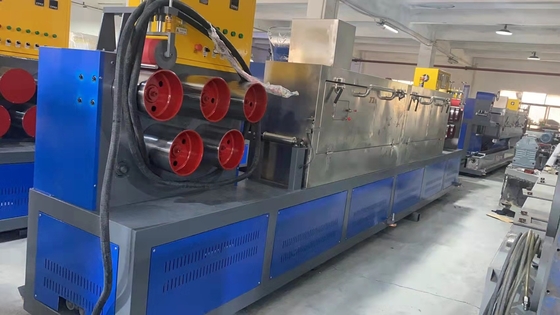

Automatic PLC Screen PP Strap Extruder Screw PP Packing Belt Machine

Large Image : Automatic PLC Screen PP Strap Extruder Screw PP Packing Belt Machine

Product Details:

Place of Origin:	SHENZHEN CHINA
Brand Name:	JIATUO CHINA
Certification:	CE ISO
Model Number:	JTPP-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic films
Delivery Time:	40-50days
Payment Terms:	L/C, T/T

Contact Now

Automatic PLC Screen PP Strap Extruder Screw PP Packing Belt Machine

Description

Screw:	Single Screw	Screw Channel Structure:	Deep Screw
Automation:	Automatic	Computerized:	PLC Screen Touch Control System
Model:	JTPP-100	Screw Dimension:	100mm
Straps Of Number:	3	Product Type:	Extrusion Molding Machine
Inverters:	INVT	Temperature Control:	Taiwan Fotek
Production Capacity:	180-200KGS/H	Key Words:	Plastic Packing Strapping Machine
Trademark:	JIATUO	Width:	5-19mm
Thickness:	0.4-1.2mm	Production Speed:	>250m/min
Highlight:	PLC Screen PP Strap Extruder , PLC Screen PP Packing Belt Machine , 200KGS/H PP Strap Extruder

Automatic PP Packing Strap Extruder Production Packing Belt Making Machine Line Screw Extrusion

Description

PP strap band extrusion line is mainly for producing PP strap.
The raw material can be 100% recycled material,which can reduce the produce cost and get a good profit. And the Pp bale is the substitution of the steel strap and has a lot of advantages such good extension,high temperature resistant,easy use.

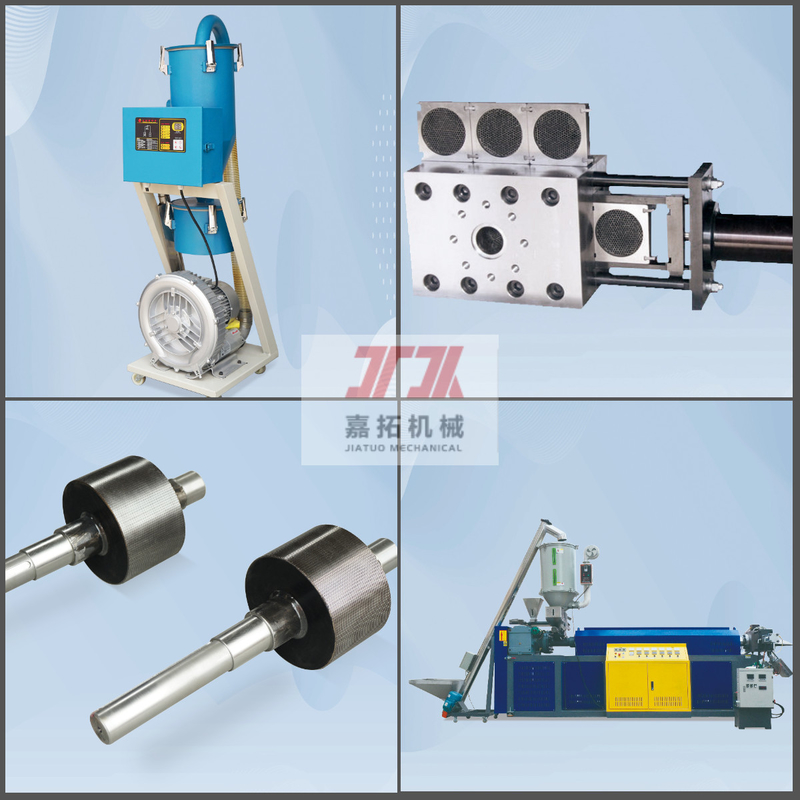

With PP recycled material, to produce various specifications of PP strap. It consists of drying system, extruder, screen changer, mould, oven, haul-off, and winder, etc.

Introduction

PP Packing Straps Making Machine

Power supply	380V,3 phase,50HZ
Raw material	PP material
Width of final product	5-19mm
thickness of final product	0.4-1.2mm
Max Capacity	180-200kg/hour
Manpower	2 persons/shift
Machine Dimension	3024m
BRANDS
Motor	Siemens
Gearbox	Beiji
Contactor	Schneider
Temperature controller	Schneider
Inverter	INVT

Automatic PLC Screen PP Strap Extruder Screw PP Packing Belt Machine 0

Different Model

PP strap Extrusion production Machine

Model	Strap Qty	Output
JTPP-90	2	120-150kg/h
JTPP-110	4	240-280kg/h
JTPP-125	6	400-450kg/h

Advantages

JIATUO PP packing belt making machines, PP packing strap extrusion machine

Special design of the screw extrusion technology can be choosing as per customer needs.
Can process 100% recycled PP/PET bottle flakes or pellets.
Plasticization and stable extrusion can with PLC automatic control for the full line.
According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
Melt filter with two pistons with air venting design and back flushing.
Number of strap:2,3,4,6,8 Width: 5mm-19mm,Thickness: 0.4mm-1.2mm
Workers: 2 -3 workers per shift, 12 hours/shift, if change the fully automatic winder can just need one person to operate.

Why choose us:

The final straps can be packed automatically
We major in PP Strap Production Line for 20 years
Always have at least 3 sets of sample machine in our workshop
Can take customers to see the running machines
Can test the machine for customers

Automatic PLC Screen PP Strap Extruder Screw PP Packing Belt Machine 3
