Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine

Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine
Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine

Large Image :  Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: JIATUO CHINA
Certification: CE/ISO
Model Number: JT-packing
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 10DAYS
Payment Terms: L/C, D/A, T/T,
Supply Ability: 50 sets/month

Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine

Description
Type: Automatic Wrapping Machine After Warranty Service: Video Technical Support, Online Support, Spare Parts
Voltage: 380V 50/60HZ OEM: Provided
Max.Tension Adjustment: 0-60kgs Dimension(L*W*H): 1400mm*628mm*1418mm
Contactor: Schneider Weight: 220kg
Tying Speed: < 2.5seconds/channel Product Name: Automatic Carton PP Plastic Packing Machine
Highlight:

PP Strap Box Strapping Machine

,

380V PP Strapping Machine

,

Fully Automatic PP Strapping Machine

Plastic Packaging Material 2.5sec.strap Strapping Machine Good Quality Fully Automatic PP straps





Description of PP wrapping machine



Builting with durable spare parts and reliable electrical components. MEIWA motor enables machine to start working as soon as power connected and No pre-heating and standby- time are required which will help save power consumption. Direct driving design guarantees a low maintenance. Reading tension percentage and heater temperature from the control panel. Faults happen statistics are stored for maintenance analysis.



Parameter of PP packing machine



Power supply 380V 50/60HZ 1.0kw
Size L1400mm*W628mm*H1418mm
Bunding specifications Minimum package size: width 80mm* height 60mm
Standard frame size: width 800mm* height 600mm
Working table height 750mm (customizable according to needs)
Weight capacity 80kg
Tighten force 0-60kg (can adjustable)
Strapping form Parallel strapping, the ways are point movement, even beating, ball switch, foot switch etc.
Weight of machine 220kg

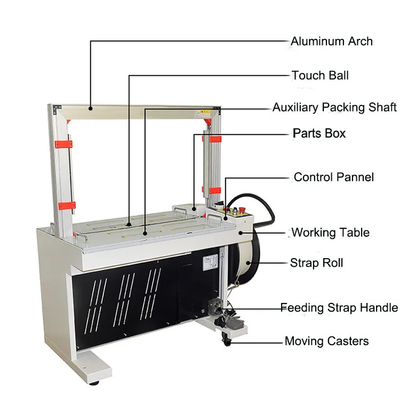

Details of PP automatic strapping machine



  1. Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation
  2. Tension Adjustment: Can be adjustable at well, Max. Tension is over 90kgs
  3. Precision Structure: Main machine`s component is made of aluminum alloy. Control System is compatible. Add on a safety device, built for 24 hours continuous operation
  4. Easy loading or unloading: To load or unload the strapping roll is convenient due to the dispenser is placed outside
  5. Extensive applications: Can be independent operation or combine with other machines for unmanned
  6. Optional:any arch size



Features of PP Strap Bundling Packing Machine

  • High speed automatic strapping machine can make 2.5 second/strap
  • MEIWA motor
  • Manual and auto mode operation
  • Loop ejecting function and refeed function
  • Rigid structure design
  • Built for 24 hours continuous operation
  • Tension adjustment: very easy from control panel
  • PCB+LCD screen: visualize temperature and banding tension
  • Banding count function
  • Easy strep loading and unloading
  • Can be used for 5mm strap.save your cost

Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine 0Plastic Packaging Box Strapping Machine Fully Automatic PP Strapping Machine 1
