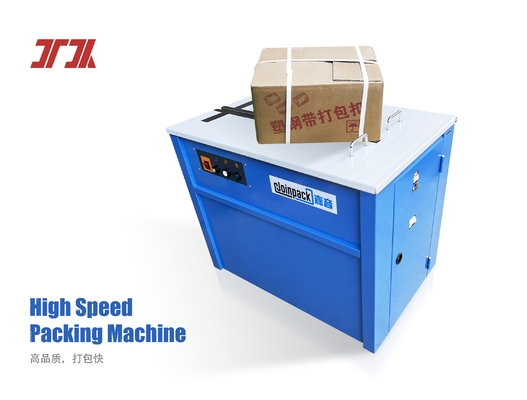

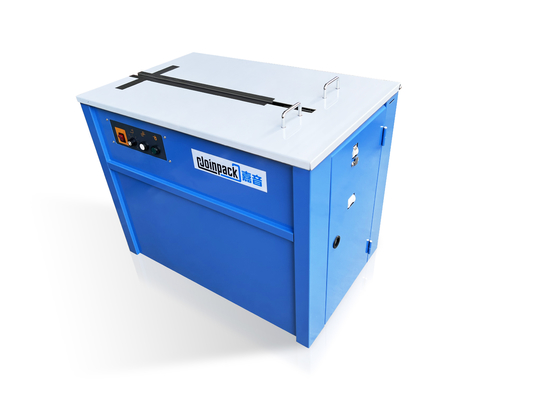

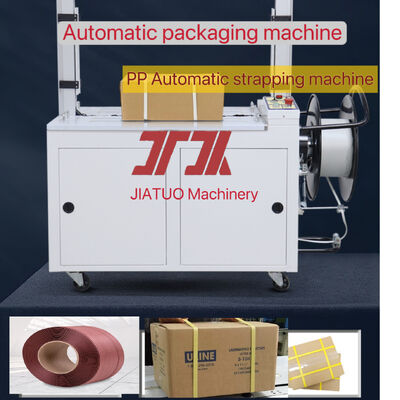

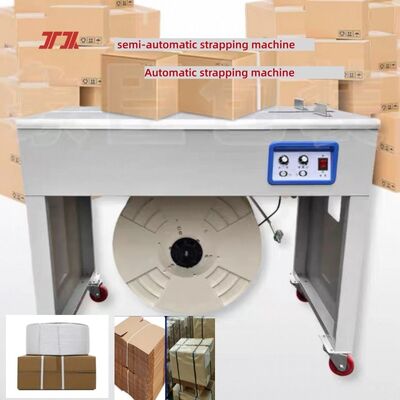

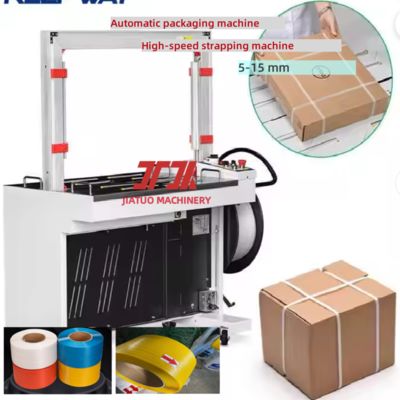

Upgrade Electric Strapping Machine Banding Tools For belts Automatic Strapping Tool For PP Pet Straps

Upgrade Electric Strapping Machine Banding Tools For belts Automatic Strapping Tool For PP Pet Straps

PRODUCT DESCRIPTION ABOUT PACKING MACHINE

Semi-automatic strapping machines typically include the following key components:

Frame---- A sturdy steel structure that provides stable support.

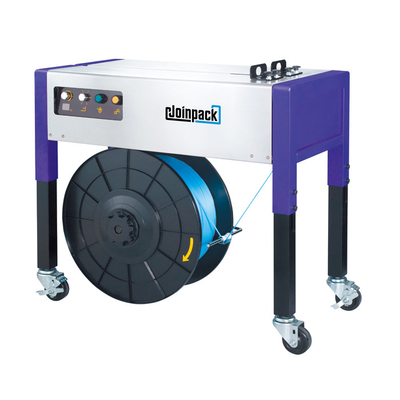

Reel----- Mounts and supports the rolled strapping tape.

Tape feed guide----- Guides the strapping tape into the machine.

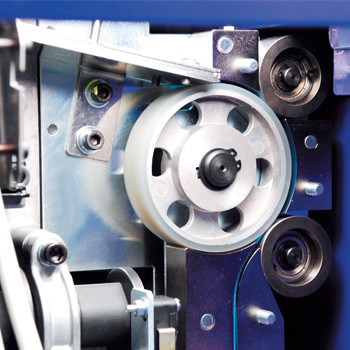

Tape retraction and tightening mechanism------ The core component responsible for tightening the strapping tape.

Electric heat welder----- Heats and melts the strapping tape to create a bond.

Drive system----- Includes a motor and gears, providing power for retraction and tightening.

Control panel-------- Typically includes a power switch, tension adjustment knob, and heating time adjustment knob.

                                                       Parameter table

Name	Semi-Automatic strapping machine
Packing speed	≤2.5 seconds/track
Work surface height	750mm
Panel load-bearing capacity	50KG
Binding force	0-60KG(Adjustable)
Joining method	Hot-melt bonding
Bundling method	Manually threading and strapping
Strap Width	6-15mm
Weight	100KG
Power supply	220V 50/60HZ.1P
Color	white red (customizable)
Size	L1000*W500*H1950mm

Feature description:

Semi-automatic strapping machines typically include the following key components:

Frame---- A sturdy steel structure that provides stable support.

Reel----- Mounts and supports the rolled strapping tape.

Tape feed guide----- Guides the strapping tape into the machine.

Tape retraction and tightening mechanism------ The core component responsible for tightening the strapping tape.

Electric heat welder----- Heats and melts the strapping tape to create a bond.

Drive system----- Includes a motor and gears, providing power for retraction and tightening.

Control panel-------- Typically includes a power switch, tension adjustment knob, and heating time adjustment knob.

How to use semi-automatic strapping machine:

1. Power switch: Turn ON to start the machine, and OFF to stop the machine.

2. Power indicator light (POWER): Turn on the power switch, the light is on.

3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.

4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.

5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.

7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

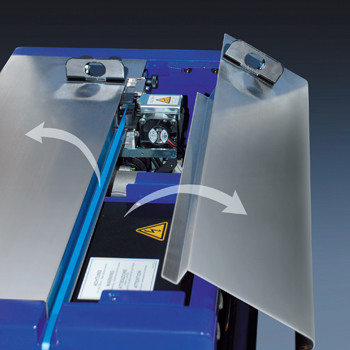

8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.

FAQ

Q: Are you a factory?
A: Yes.We are a factory.

Q: How to choose the suitable machine?
A: We will recommend based on your demands for your reference.

Q: Can you send me the video to show how the machine work?
A: Each machine has its operation video and manual.

Q: What about after-sales service?
A: Some parts of the machine are wearable, which can be covered by 3-month time warranty, other parts in 1-year warranty. But the freight and other charges does not included due to the long distance. We suggest you purchase several sets of wearable spare parts reserve

Q: How long is your delivery time?
A: The delivery time based on your order quantity and model. Small order of standard machine usually have stock. For large quantity or customized machines, it needs to be negotiated.

Q: How to pay for the machines?
A: Small order quantity can be paid on Google or Western union. Larger order quantity can be paid by T/T.
