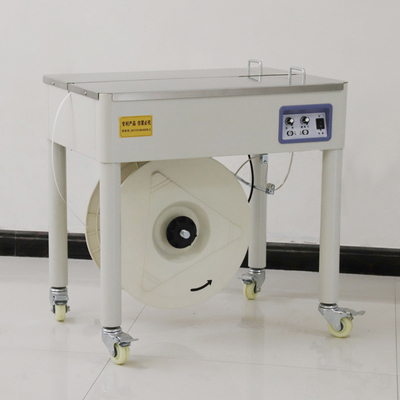

Packing JT-PK001 Semi-Automatic Drive PP Belt Hand Banding Box Carton Strapping Machine

Bropak Packing JT-PK001 Semi-Automatic Drive PP Belt Hand Banding Box Carton Strapping Machine

PRODUCT DESCRIPTION ABOUT PACKING MACHINE

1. Suitable for packing tape width: 6-15mm (adjustable)

2. Bale speed: 2.5 seconds/strip

3. Power supply voltage: 110/220V.1PH

4. Binding force: 15-45KGs

5. Machine size: (L) 902* (W) 575* (H) 780

6. Machine plate color: can be customized according to customer requirements, OEM



Semi-automatic Strapping Machine is easy to manipulate. The strapping tension can be adjusted from 30 to 450N. In the package with the machine are all necessary accessories so you are able to get your bundling process started as soon as the package arrives.

Semi-automatic Strapping Machine can be used in all sorts of industries or warehouses and will speed up your work thus making your employees more productive. The semi-automatic machine uses the latest strapping technology and it is designed to deliver a high-grade friction weld seal.

Cycle Time	2.5 sec./strap
Tension Range	15~45kgs
Strap Width	9,12,15.5mm adjustable
Sealing Method	Heating element
Reel Inside Diameter	200,230,280mm specified
Power Supply	100/110/220/230/240V 50/60HZ, 1PH
Table Height	780mm
Power Consumption	0.4kw
Machine Dimension (L x W x H mm)	L902 x W575 x H780
Machine Weight (50%,100%,150%,200%)	90kgs

Feature description:

1. Collapsible desktop design, easy maintenance.

2. Strong structure and beautiful shape

More than 50 years production experience of baling machine, stable quality.

4 motor automatic power outage, equipment power saving, durable.

5. Fast heating design, heating fast, and safe.

6. Equipped with auxiliary tape feeding and cutting switch, the length of the tape feeding can be adjusted, easy to use.

7. Equipped with wearing parts randomly

How to use semi-automatic strapping machine:

1. Power switch: Turn ON to start the machine, and OFF to stop the machine.

2. Power indicator light (POWER): Turn on the power switch, the light is on.

3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.

4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.

5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.

7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.

FAQ

Q: Are you a factory?
A: Yes.We are a factory.

Q: How to choose the suitable machine?
A: We will recommend based on your demands for your reference.

Q: Can you send me the video to show how the machine work?
A: Each machine has its operation video and manual.

Q: What about after-sales service?
A: Some parts of the machine are wearable, which can be covered by 3-month time warranty, other parts in 1-year warranty. But the freight and other charges does not included due to the long distance. We suggest you purchase several sets of wearable spare parts reserve

Q: How long is your delivery time?
A: The delivery time based on your order quantity and model. Small order of standard machine usually have stock. For large quantity or customized machines, it needs to be negotiated.

Q: How to pay for the machines?
A: Small order quantity can be paid on Google or Western union. Larger order quantity can be paid by T/T.
