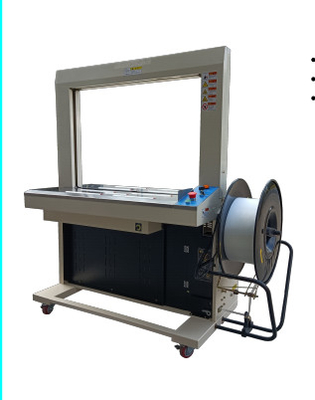

High efficiency Full Automatic Carton Box Case Strapping Machine

Large Image : High efficiency Full Automatic Carton Box Case Strapping Machine

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	JIATUO
Certification:	CE, ISO
Model Number:	MH101

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plastic film or other standard package for sea shipping
Delivery Time:	10~15working days
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability:	100 set/month

Contact Now

High efficiency Full Automatic Carton Box Case Strapping Machine

Description

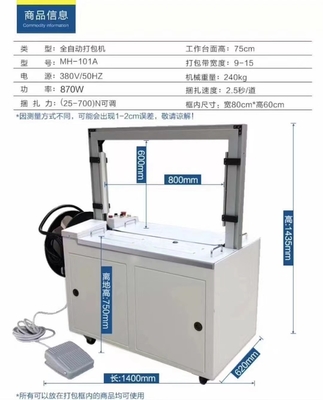

Product Name:	Automatic Strapping Machine	Size:	1400mm628mm1418mm
Weight Capacity:	80kgs	Tying Speed:	≤2.5second/channel
Tighten Force:	0-60kgs(ajustable)	Strapping Form:	Parallel Strapping
Motor:	MEIWA	Noise:	≤80dB In Working Enviroment
Weight:	220kgs	Power:	380V 50/60HZ 1.0KW

High efficiency Full Automatic Carton Box Case Strapping Machine

PRODUCT DESCRIPTION

Model	MH101
Brand	YUPACK
Grade	Full automatic
Origin	Qingdao,China
Strapping force	0-80Kg(adjustable)
Strapping speed	2. 5seconds/cycle
Arch size	W800*H600mm(standard machine)
Material of arch	Aluminum
Table height	750mm
Width of pp strap	9-1 5mm
Thickness of pp strap	0.55-1.2mm
Suitable for strap	PP Strap
Voltage	220/380/415V 3P
Power	0.75KW 50/60HZ
Machine size	L1580W650H1418mm
Machine weight	280kg
CE certificate	Approved
Warranty	12months
Warranty parts	Motor/Breaker/Control switch etc

High efficiency Full Automatic Carton Box Case Strapping Machine 0

Features of the automatic strapping machine for PET strap:
1.Easy to use ,lightweight, compact design
2.No fasteners, friction welding , high sealing efficiency
3.High degree of automation, easy to operate
4.Suitable for different sizes and shapes
5.Machine frame and components adopt high strength alloy material and engineering plastics
6.High safety performance

Hinged table top
Mechanical tension control
Motor shut off for energy saving
Easy operation, less maintenance
Reliable PCB and control components

How to use semi-automatic strapping machine:

1. Power switch: Turn ON to start the machine, and OFF to stop the machine.

2. Power indicator light (POWER): Turn on the power switch, the light is on.

3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.

4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.

5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.

7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.
