Automatic Box Case Carton Strapping Machine auto strapping machine pp belt strapping machine for pp strapping
PRODUCT DESCRIPTION

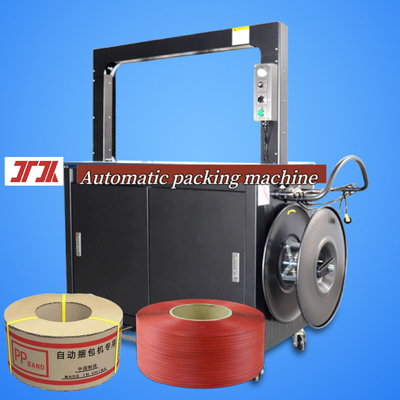

Automatic PP Strapping Packing Machine
a: Automatic strapping machine, without manual belt insertion, high working efficiency, one full automatic strapping machine is equivalent to 5 semi-automatic strapping machines.
b. There are four packing methods for this machine, manual, pedal, automatic and continuous.
c. The parts of the movement are precisely processed by computer numerically controlled machine tools, and the matching accuracy reaches the micron level.
d. The key machine parts are made of high-strength, corrosion-resistant materials and have a long service life.
e. Packing noise is low, and it stops immediately after packing technology, which saves electricity and is practical.
f. The standard frame of this machine is 800*600 mm. If the size of your goods is larger or smaller than this size, we can also customize it according to your size.
|
Model
|
MH101
|
|
Strapping force
|
0-80Kg(adjustable)
|
|
Strapping speed
|
1. 5seconds/cycle
|
|
Arch size
|
W800*H600mm(standard machine)
|
|
Table height
|
750mm
|
|
Width of pp strap
|
9-1 5mm
|
|
Thickness of pp strap
|
0.55-1.2mm
|
|
Voltage
|
220/380/415V 3P
|
|
Machine size
|
L1580*W650*H1418mm
|
|
Warranty
|
12months
|
How to use semi-automatic strapping machine:
Installation of PP belt reel:
1) First, unscrew the handwheel and remove the outer banding disk.
2) Next, load the PP tape roll, the tape ring should be loaded according to the rotational direction marked on the tape disk, and the bracing claws hold up the tape ring.
3) Load the outer belt disk, please note that when loading the outer belt disk, the slot on the disk should be aligned with the pin on the shaft.
4)Tighten the handwheel
About after-sales:
1. The warranty period of our fully automatic strapping machine is 12 months.
2. Our technicians support 24-hour online service.
3. Our fully automatic strapping machines are strictly inspected before leaving the factory and support connection detection.
4. Our fully automatic strapping machines are equipped with wearing parts.
5. Our fully automatic strapping machines can customize voltage and current according to customer requirements
FQA:
Q: Can the size of the baler be customized?
It can be customized according to requirements, and the delivery date is longer.
Q: Does the automatic baler have after-sales service?
A: We are a manufacturing factory with our own engineering team and after-sales team.
Q: Can the voltage of the automatic baler be customized?
A: Customization is supported
Q: What is the packaging method of the automatic baler?
The automatic baler is packaged in an export wooden box and is securely fixed in the wooden box.
Q: What kind of packaging material is suitable for the automatic baler?
A: PP strapping, width: 5-19mm (optional)
Q: What is the transaction method of the automatic baler?
A: We support: TT, LC, Made-in-China.com transactions.
