Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line

Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line
Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line
Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line

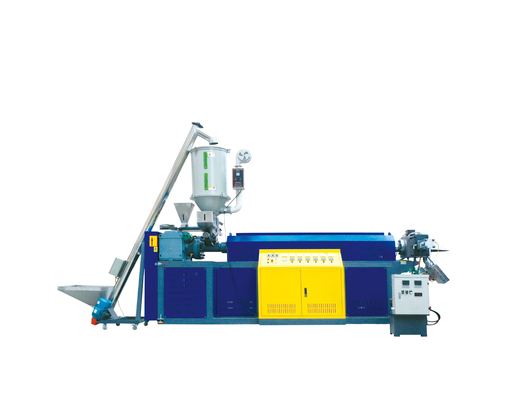

Large Image :  Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line

Description
Product Name: Plastic PET Recycling Plant PET Strap Making Machine / PET Package Strap Band Extrusion Line Product Type: PET Strap Making Machine
Plastic Processed: PP Screw Design: Single-screw,Double-screw,single Or Double
Processing Type: Extruding Machine Twin Screw Type: Co-rotating Parallel Twin-screw
Driven Type: Electric Application: Packaging Strap
Highlight:

0.5mm PP Strap Making Machine

,

1.5mm PP Strap Band Extrusion Line

,

0.5mm PP Strap Extrusion Machine

Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line



Plastic PP Recycling Plant PP Strap Making Machine / PP Package Strap Band Extrusion Line


Quick Detail Of PP Strap Making Machine

PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.

Model Width Thickness Pull Gross weight net weight net weight Length
PP-05045 5.0mm 0.45mm >50kg 10kg 8.8kg Ø200mm 7000m
PP-05050 5.0mm 0.50mm >60kg 10kg 8.8kg Ø200mm 6000m
PP-06050 6.0mm 0.50mm >65kg 10kg 8.8kg Ø200mm 5000m
PP-08050 8.0mm 0.50mm >90kg 10kg 8.8kg Ø200mm 4200m
PP-09050 9.0mm 0.50mm >85kg 10kg 8.8kg Ø200mm 3500m
PP-09060 9.0mm 0.60mm >90kg 10kg 8.8kg Ø200mm 3100m
PP-09070 9.0mm 0.70mm >110kg 10kg 8.8kg Ø200mm 2550m
PP-11045 11.0mm 0.45mm >80kg 10kg 8.8kg Ø200mm 3500m
PP-12050 12.0mm 0.50mm >110kg 10kg 8.8kg Ø200mm 2500m
PP-12060 12.0mm 0.60mm >120kg 10kg 8.8kg Ø200mm 2300m
PP-12080 12.0mm 0.80mm >150kg 10kg 8.8kg Ø200mm 1650m
PP-13550 13.5mm 0.50mm >120kg 10kg 8.8kg Ø200mm 2300m
PP-13560 13.5mm 0.60mm >130kg 10kg 8.8kg Ø200mm 2000m
PP-13570 13.5mm 0.70mm >150kg 10kg 8.8kg Ø200mm 1700m
PP-13580 13.5mm 0.80mm >160kg 10kg 8.8kg Ø200mm 1450m
PP-15050 15.0mm 0.50mm >130kg 10kg 8.8kg Ø200mm 2100m
PP-15060 15.0mm 0.60mm >140kg 10kg 8.8kg Ø200mm 1850m
PP-15070 15.0mm 0.70mm >150kg 10kg 8.8kg Ø200mm 1450m
PP-15080 15.0mm 0.80mm >160kg 10kg 8.8kg Ø200mm 1250m
PP-15100 15.0mm 1.00mm >180kg 10kg 8.8kg Ø200mm 950m
PP-18080 18.0mm 0.80mm >180kg 10kg 8.8kg Ø200mm 1150m
PP-19060 19.0mm 0.60mm >160kg 10kg 8.8kg Ø200mm 1250m
PP-19070 19.0mm 0.70mm >200kg 10kg 8.8kg Ø200mm 1150m
PP-19080 19.0mm 0.80mm >240kg 10kg 8.8kg Ø200mm 950m


Specification Of PP Strap Production Line

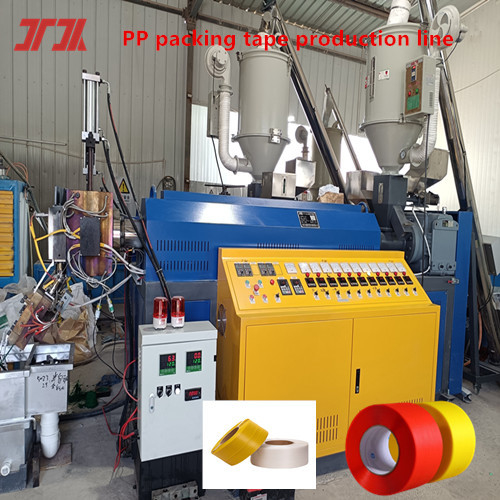

Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line 0


Features Of Plastic PP Extrusion Line


(1) Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.

(2) Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.

(3) Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.

(4) Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.

(5) Look beautiful: Finish bundled items look beautiful, does not pollute the items, never rust.

(6) Very good strength: Can provide up to 470 MPA tensile strength to protect the safety of Strapping.

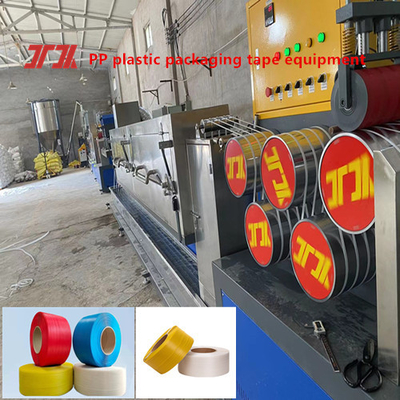

Thick 0.5mm 1.5mm PP Strap Making Machine Strap Band Extrusion Line 1
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE

1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
