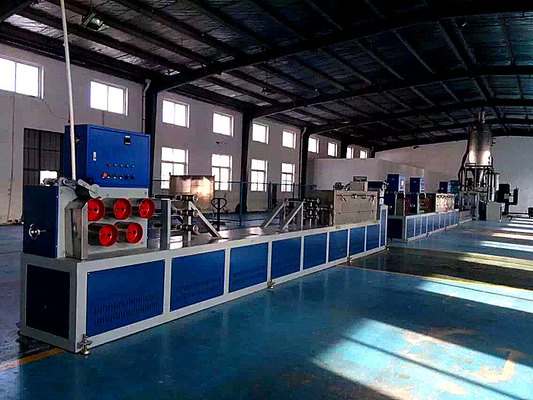

250kg/H PP Four Straps Strapping Band Extruder Making Machine
Quick Detail About PP Packing Strap Production Line
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 250kg/h
Installation size: L38*W2.0*H4.0(m)
Specification Of PP Strapping Machine
| Output |
150kg/hr |
300kg/hr |
500kg/hr |
800kg/hr |
| Motor Power |
55KW |
110KW |
160KW |
250KW |
| Installation Power |
280KW |
445KW |
635KW |
900KW |
| Speed |
120m/min |
120m/min |
120m/min |
120m/min |
| Overall Size of Machine |
32*4*5m |
46*5*5.5m |
60*6*6m |
60*6*6m |
| Width of Strap |
9-19mm |
9-32mm |
9-32mm |
9-32mm |
| Width Tolerance |
±0.45mm (int. ±0.76mm) |
| Thickness of Strap |
0.55~ 1.27mm |
0.55~1.27mm |
0.55~1.27mm |
0.55~1.27mm |
| Thickness Tolerance |
±0.05mm (int. ±0.06mm) |
| Elongation Rate of Strap |
10~15% |
| Breaking Strength of Strap |
< 50kg/mm² |
Advantage Of PP Extrusion Making Machine
1. Special design of the screw extrusion technology can be choosing as per customer needs.
2. Can process 100% recycled PP/PET bottle flakes or pellets.
3. Plasticization and stable extrusion can with PLC automatic control for the full line.
4. According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5. Melt filter with two pistons with air venting design and back flushing.
6. Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7. Workers: 2 -3 workers per shift, 12 hours/shift.
Turnkey Project Service About PP Strapping Machine
Pre-sale service:
1. To provide all the machines for the complete testing according to customer's requirements.
2. To provide complete service for factory layout and other information to help customer to build the factory.
After-service:
1. To provide raw material to the customer if you need.
2. Free installation and debugging and training until customers can run the machines and make stably production.
3. Provide all kinds of product formula, technology
4. According to the customer's requirements, provide technical guidance
5. Responsible for maintenance service, door to door service if necessary.
6. Except one year quality guarantee,we will provide after-sell service for all the life.
FAQ About Plastic Strapping Band Making Machine
Q. Are we manufactory of trade company?
A. We are factory has big workshop space and long history.
Q. What kind machines we produce?
A. Our factory produce plastic machines for PP & PET, PP strap making machine, PET extrusion production line...
Q. Can we produce the machine as customer costom order? A. Yes.
Q. Can customer send worker here to study the operation of the machine? A. Yes.
Q. Can customer send technician here to inspect the machine and loading?
A. We welcome you to visit us for this purpose.
Q. How long we need to produce the machines?
A. According to different machine model and configuation, we need different time, like 20 days to 2 months.
