Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine

Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine
Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine

Large Image :  Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-90
Document: parameter details of PP Str...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month

Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: 100% PP
Screw Design: Optional Twin Screw Type: Co-rotating Parallel Twin-screw
Driven Type: Electric Processing Type: Extruding Machine
Automation: Automatic Application: Packaging Strap
Width: 5-19mm Thickness: 0.4-1.2mm
Highlight:

4 Cavity PP Strap Extrusion Line

,

200kg/h PP Strap Extrusion Line

,

PP Strap Making Machine Single Screw

Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine

Quick Detail Of PP Strap Making Machine

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)


Configuration Of PP Strapping Production Line

NO. Name QTY
1 Color Mixer 1 set
2 Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it.
1 set
3 Hopper dryer 1 set
4 SJ single screw extruder 1 set
5 High speed Screen exchanger device 1 set
6 Molud 1 set
7 Water cooling tank 1 set
8 The first traction machine- 5 rollers 1 set
9 The first Stretch forming oven 1 set
10 The Second traction machine- 5 rollers 1 set
11 The second Stretch forming oven 1 set
12 The Third traction machine- 3 rollers 1 set
13 Embossing machine 1 set

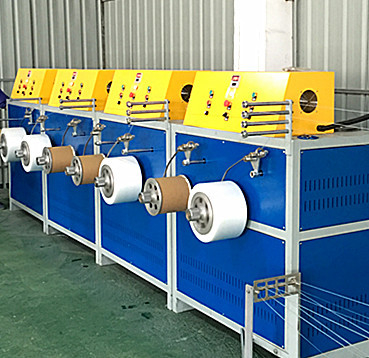

14 The Winder machine 1 set

Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine 0

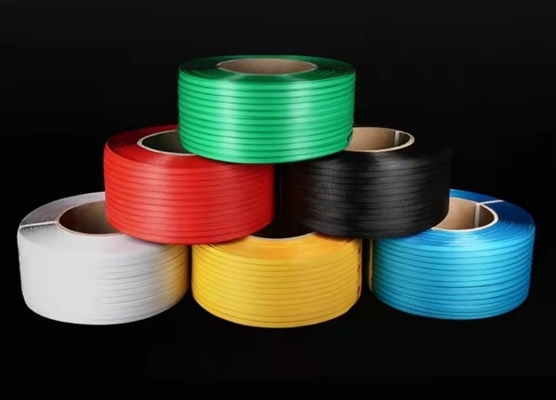

                                    Specifications of PP strapping tape:



Model Width Thickness Pull Gross weight Net weight Paper core Length
PP-05045 5.0mm 0.45mm >50kg 10kg 9.5kg Ø200mm 7000m
PP-08050 8.0mm 0.50mm >90kg 10kg 9.5kg Ø200mm 4700m
PP-09060 9.0mm 0.60mm >90kg 10kg 9.5kg Ø200mm 3150m
PP-10060 10.0mm 0.60mm >110kg 10kg 9.5kg Ø200mm 2350m
PP-11045 11.0mm 0.45mm >80kg 10kg 9.5kg Ø200mm 3650m
PP-12080 12.0mm 0.80mm >150kg 10kg 9.5kg Ø200mm 1700m
PP-13580 13.5mm 0.80mm >160kg 10kg 9.5kg Ø200mm 1550m
PP-15100 15.0mm 1.00mm >180kg 10kg 9.5kg Ø200mm 1050m
PP-18080 18.0mm 0.80mm >180kg 10kg 9.5kg Ø200mm 1150m
PP-19060 19.0mm 0.60mm >160kg 10kg 9.5kg Ø200mm 1350m
PP-19070 19.0mm 0.70mm >200kg 10kg 9.5kg Ø200mm 1200m
PP-19080 19.0mm 0.80mm >240kg 10kg 9.5kg Ø200mm 1000m




About us:

We have more than 30 years of manufacturing experience in the PP/PET strapping industry, and our R&D and after-sales personnel often go abroad to study;

We are a manufacturing factory with our own production workshop, and all accessories are processed by our own lathes.

We have our own production team, R&D team, after-sales team, sales team, etc.

The quality of the machines we produce is stable and the after-sales service is guaranteed.



Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine 1

FAQ About PP Belt Strapping Production Line


Q1:Are you a trading company or a factory?

A1:We are a factory,can give u best service.


Q2:When can I get my machine after I paid?

A2:We will deliver the machines on time as the date we agreed both side.


Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.



Q4:What's your guarantee or the warranty of the quality if we buy your machines?

A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
Plastic Machinery 5-19mm PP strapping production line PP strapping equipment PP PET extruder for automatic wrapping machine 2
