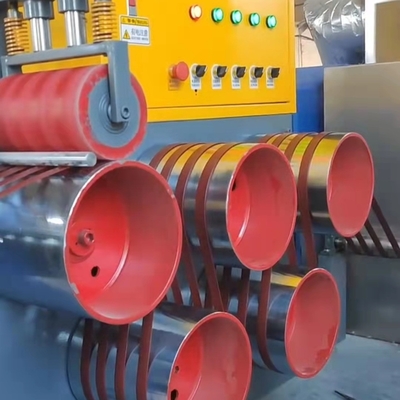

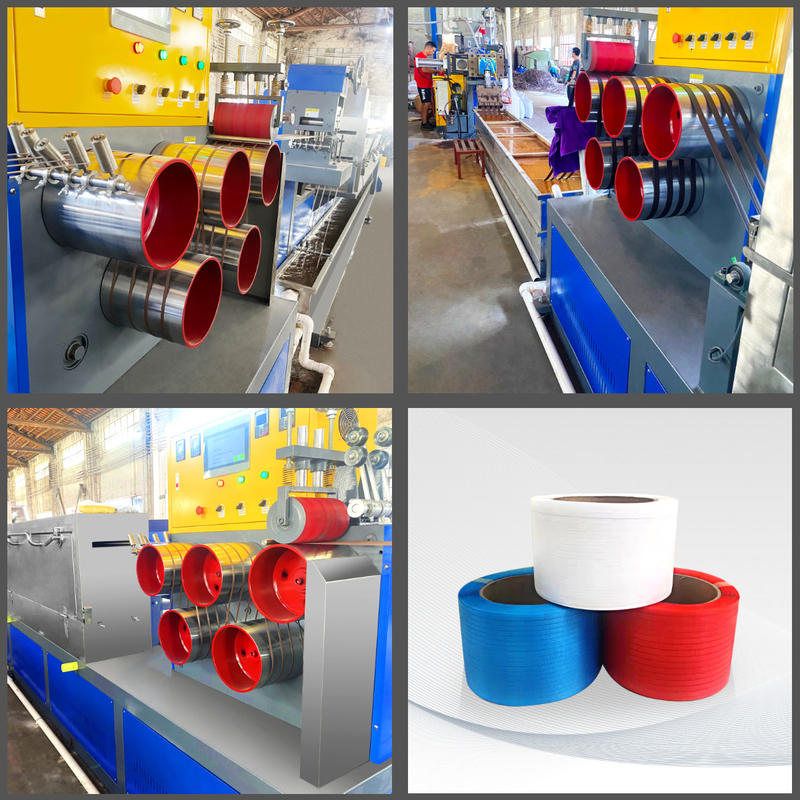

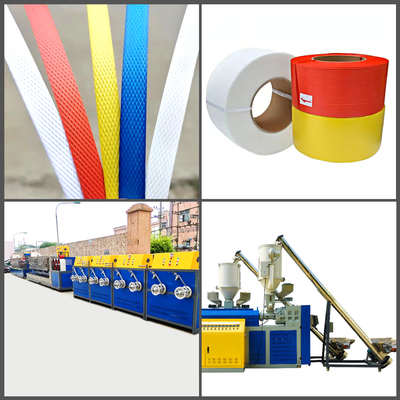

Single Screw PP Belt Strapping Band Production Line/PP Strap Making Machine
QUICK DETAILS OF PP STRAP MAKING MACHINE
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
CONFIGURATION OF PP STRAPPING PRODUCTION LINE
| NO. |
Name |
QTY |
| 1 |
Color Mixer |
1 set |
| 2 |
Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it. |
1 set |
| 3 |
Hopper dryer |
1 set |
| 4 |
SJ single screw extruder |
1 set |
| 5 |
High speed Screen exchanger device |
1 set |
| 6 |
Molud |
1 set |
| 7 |
Water cooling tank |
1 set |
| 8 |
The first traction machine- 5 rollers |
1 set |
| 9 |
The first Stretch forming oven |
1 set |
| 10 |
The Second traction machine- 5 rollers |
1 set |
| 11 |
The second Stretch forming oven |
1 set |
| 12 |
The Third traction machine- 3 rollers |
1 set |
| 13 |
Embossing machine |
1 set |
| 14 |
The Winder machine |
1 set |
APPLICATION & FEATURES OF PP STRAP EXTRUSION LINE
The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
FAQ ABOUT PP BELT STRAPPING PRODUCTION LINE
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:When can I get my machine after I paid?
A2:We will deliver the machines on time as the date we agreed both side.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
