Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line

Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line
Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line
Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line

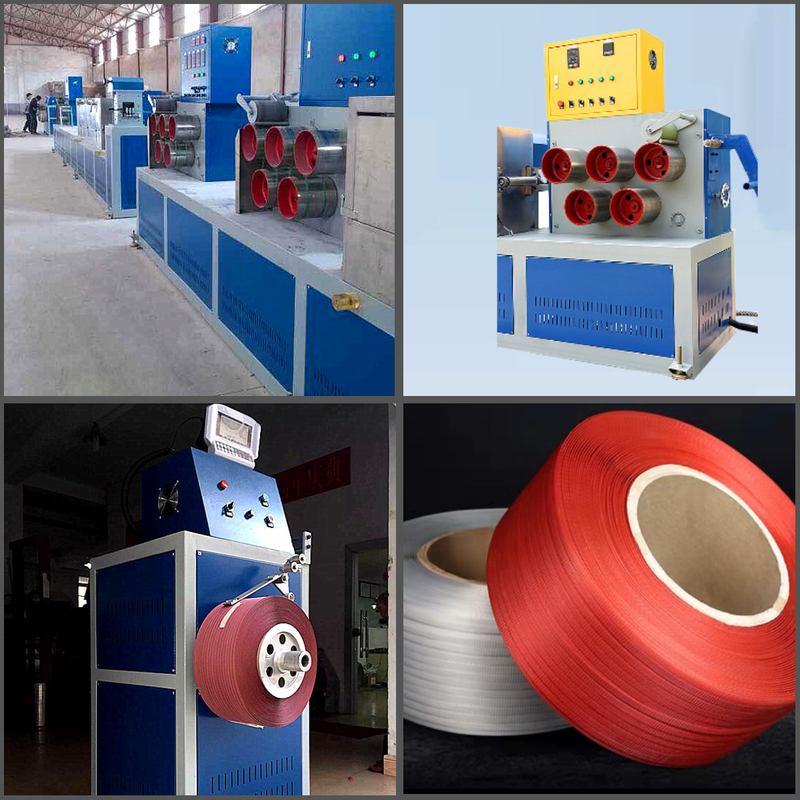

Large Image :  Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: 1 To 4 Processing Type: Extruding Machine
Capacity: 200kg/h Power: 100KW
Driven Type: Electric Application: Packaging Strap
Automation: Automatic Warranty: 1 Year
Highlight:

Polypropylene Plastic PP Strap Making Machine

,

100 KW PP Strap Making Machine

,

Plastic PP Strap Band Extruding Line

Polypropylene Plastic Strap Production Line PP Strapping Band Making Machine



PRODUCT DESCRIPTION


Polypropylene strapping is the most economical of all strapping material due to it's light weight and versatility.it is available in a wide variety of sizes and gauges and offers the greatest elongation of any strapping type,along with good initial recovery characteristics.polypropylene can be heat sealed with joint efficiency of 70 to 80%.



PP strapping production line 1 to 4 product parameters:

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

Model No. Screw Size No. of strap Capacity Total Power Width Range Thickness Range Installation Dimensions
JTPP-90 2800mm 2 100kg/h 80kw 5-19mm 0.4-1.2mm 30*2.0*4.0M
JTPP-100 2800mm 3 150kg/h 90kw 5-19mm 0.4-1.2mm 30*2.2*4.0M
JTPP-110 3300mm 4 200kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M
JTPP-110 3300mm 6 130kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M



The process flow of PP Packing Strap Belt Making Machine:

Vacuum feeding → Dryer → Extruding system → High speed Net exchanging system → Mould → Water cooling system →

Traction rollers → Stretch oven 1 → Tensile unit→ Embossing unit → Tensile unit→ Double winder



Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line 0

Plastic Strapping

Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.

Polypropylene Strapping

Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length

Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line 1

Advantages of PP strapping production line

  • PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and

drying that save a large number of equipment investment and reduce the production cost by 30%;

  • Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;



  • With the multi-purpose machine, produce the PP PET straps in different specifications directly and don not need to change the mould head;



  • Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock

resistance are up to the international grade;

  • Low Energy consumption, but high production capability;



  • Easy to operate, save the manpower and two persons for one production line on average


Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line 2

Plastic PP Strap Making Machine 100 KW Polypropylene Band Production Line 3
