Product Details:
|
Product Type: | PP Packing Belt Machine | Raw Material: | Polypropylene PP Raw Material Pellets, Recycled Pellets |
---|---|---|---|
Processing Type: | Extruding Machine | Screw Design: | 1 To 2, 3, 4, 6 |
Power: | 100KW | Capacity: | 250kg/h |
Automation: | Automatic | Driven Type: | Electric |
Application: | Packaging Strap | Warranty: | 1 Year |
Highlight: | PP Packaging Strap Belt Extrusion Line,100KW PP Strap Belt Making Machine,Polypropylene Strapping Extrusion Line |

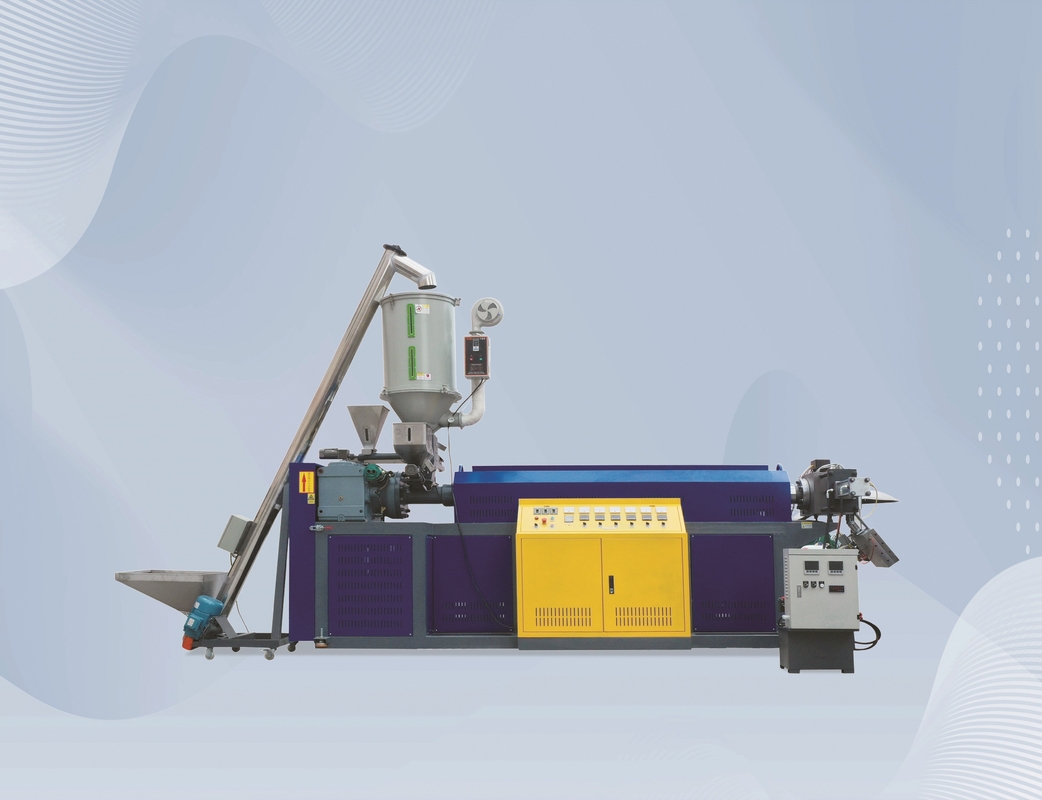

Single Screw PP Strap Manufacturing Machine Polypropylene Strapping Extrusion Line
PP BAND MAKING MACHINE DESCRIPTION
This production line can produce different width and thickness of PP strap according to the client's requirement.
Features and Application This extrusion line is mainly for producing PP strap. The raw material can be 100% recycled material, which can reduce the Pprduce cost and get a good profit. And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature resistant, easy use. It is mainly suitable for packaging for various trades. The use of the product is convenient and it can adopt common steel fastening for connection. It also is suitable for various kinds of hand-operated of table packing machine and large auto-packaging machine of enterprises.
Model No. | Screw Size | No. of strap | Capacity | Total Power | Width Range | Thickness Range | Installation Dimensions |
JTPP-90 | 2800mm | 2 | 100kg/h | 80kw | 5-19mm | 0.4-1.2mm | 30*2.0*4.0M |
JTPP-100 | 2800mm | 3 | 150kg/h | 90kw | 5-19mm | 0.4-1.2mm | 30*2.2*4.0M |
JTPP-110 | 3300mm | 4 | 200kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
JTPP-110 | 3300mm | 6 | 130kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
1 . This line is specially designed for the production of PP Straps. It can produce 2 or 4 PP Straps at the same time that saves energy by 20%-30%;
2 . Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3 . PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
Model | Strap Width | Strap Thickness | Break Load | Net Weight | Strap Length | Core Size |
PP05005 | 5mm | 0.5mm | >40kg | 10kg | >6700M | 200mm |
PP06006 | 6mm | 0.6mm | >50kg | 10kg | >5800M | 200mm |
PP08005 | 8mm | 0.5mm | >60kg | 10kg | >3600M | 200mm |
PP09005 | 9mm | 0.5mm | >80kg | 10kg | >3300M | 200mm |
PP09006 | 9mm | 0.6mm | >90kg | 10kg | >3000M | 200mm |
PP09007 | 9mm | 0.7mm | >100kg | 10kg | >2500M | 200mm |
PP09008 | 9mm | 0.8mm | >120kg | 10kg | >2300M | 200mm |
PP12006 | 12mm | 0.6mm | >120kg | 10kg | >2300M | 200mm |
PP12007 | 12mm | 0.7mm | >130kg | 10kg | >2000M | 200mm |
PP12008 | 12mm | 0.8mm | >150kg | 10kg | >1660M | 200mm |
PP13506 | 13.5mm | 0.6mm | >130kg | 10kg | >2000M | 200mm |
PP13507 | 13.5mm | 0.7mm | >150kg | 10kg | >1700M | 200mm |
PP13508 | 13.5mm | 0.8mm | >160kg | 10kg | >1440M | 200mm |
PP13510 | 13.5mm | 1.0mm | >170kg | 10kg | >1250M | 200mm |
PP15005 | 15mm | 0.5mm | >130kg | 10kg | >2100M | 200mm |
PP15006 | 15mm | 0.6mm | >140kg | 10kg | >1830M | 200mm |
PP15008 | 15mm | 0.8mm | >160kg | 10kg | >1250M | 200mm |
PP15010 | 15mm | 1.0mm | >180kg | 10kg | >1100M | 200mm |
PP18008 | 18mm | 0.8mm | >220kg | 10kg | >1100M | 200mm |
SERVICE
FAQ
(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
(2).Q: How can I get the price, photos and video about the machine?
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.
(3).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
(4).Q: Why choose us?
A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery more than 20 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.
