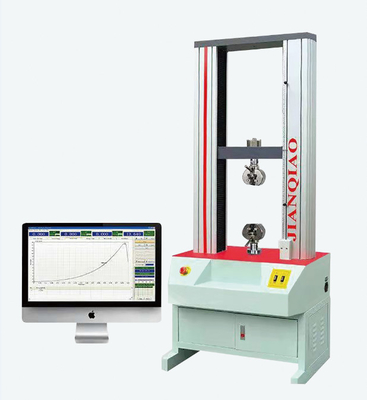

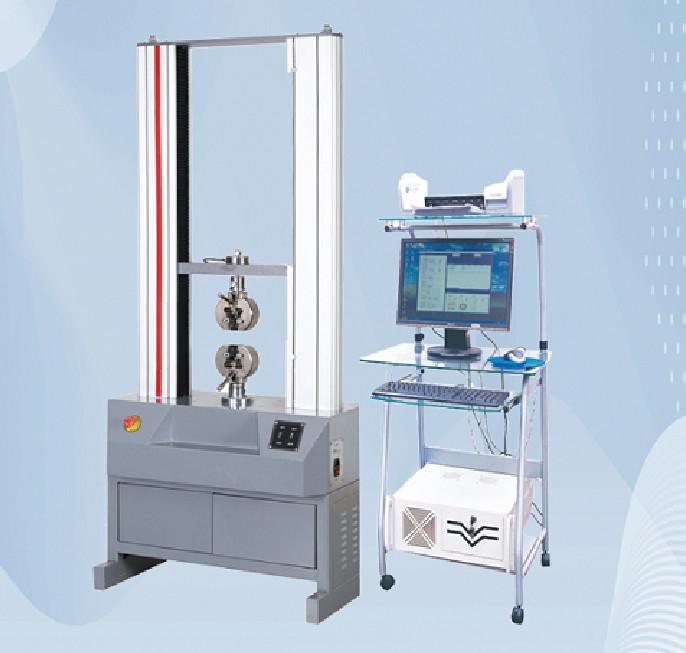

PP/PET Computer Controlled Universal Tensile Testing Machine
PRODUCT DESCRIPTION
The 10kn 20kn Computer control electronic plastic tensile strength testing machine is suitable for metal materials, non-metal materials, composite materials, like metal wire, rebar, wood, cable, nylon, leather, tape, aluminum, alloy, paper, fiber, plastic, rubber, cardboard, yarn, spring etc..This tensile strength testing machine can be equipped with different clamps, then it can test the tensile strength, compression strength, bending strength, bonding strength, tearing strength, breaking strength, yield strength, elongation rate, elastic modulus and so on.
| Max load |
5KN,10KN, 20KN |
| Accurate grade |
1 % /0.5 % |
| Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
| Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor |
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
|
| Effective testing width |
390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm
|
| Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety |
Electronic-limit protection |
| Testing platform moving device |
Fast /slow two speeds to control,can jog |
| Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%,automatic protection |
| fixture |
A set of tensile fixture |
| Machine size |
80x55x220cm(length*width*height) |
| Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply |
220V,50HZ, |
| Power |
0.4KW(depending on different demand of force, using different motor) |
| Machine weight |
(about)250 Kg |
| Units |
Kg, N, LB, TON, can be exchanged. |
CHARACTER
1. The structure of tensile strength testing machine is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Paper tensile strength testing machine use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. Paper tensile strength testing machine use the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
APPLICATION
The equipment is applicable to the manufacture of metal, adhesives, pipes, profiles, aerospace, petrochemical, waterproofing membranes, wire
and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper, etc. The product quality supervision
departments at all levels are also applicable to teaching demonstrations in colleges and universities.Tensile testing machine 50KN price computer
controlled universal tensile testing machine.
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
