9-32mm PET Strap Extrusion Line Extruder 200kg/h

9-32mm PET Strap Extrusion Line Extruder 200kg/h
9-32mm PET Strap Extrusion Line Extruder 200kg/h 9-32mm PET Strap Extrusion Line Extruder 200kg/h

Large Image :  9-32mm PET Strap Extrusion Line Extruder 200kg/h

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

9-32mm PET Strap Extrusion Line Extruder 200kg/h

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Thickness Range: 0.6-12mm PET Strap Width: 9-32mm
Capacity: 200kg/h Driven Type: Electric
Voltage: According To Customer's Factory Motor: Siemens
Product Color: Green/Pink/yellow/black Application: Packaged Material
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year
Highlight:

32mm PET Strap Extrusion Line

,

PP Strap Extruder 200kg/h

,

200kg/h PET Strap Extrusion Line

9-32mm PET Packing Strap Production Line PET Packing Straps Extruder Machine


PRODUCT DESCRIPTION

PET PP packing strap production is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.

Descripition:

This machine is mainly used to make PET strap ,PP packing strap.

Our machines adopts the PLC control to realsize the whole line auotmatic production.

Using the melting pump and pressure sensor ensure the production stable and strap quality control.

The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.

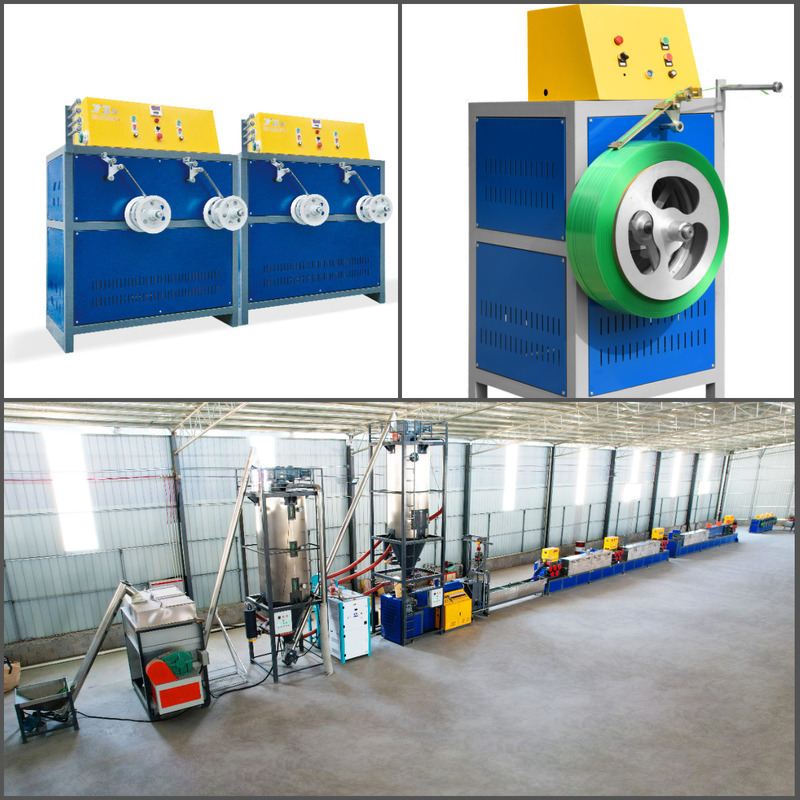

PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

9-32mm PET Strap Extrusion Line Extruder 200kg/h 0

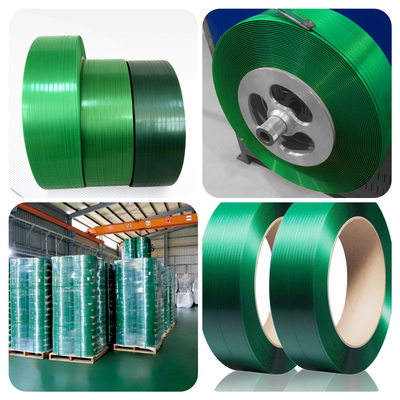

Advantages of PET strap

  • Use 100% Recycled PET/PP Flakes to reduce the cost.
  • Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
  • Special design hot forming tensile tank to make good forming ,equal width,straight strap.

Functions of PET packing strap production line:


1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;



2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;



3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;



4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;



5) Low Energy consumption, but high production capability;



6)Easy to operate, save the manpower and two persons for one production line on average.

9-32mm PET Strap Extrusion Line Extruder 200kg/h 1
9-32mm PET Strap Extrusion Line Extruder 200kg/h 2
