PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll

Large Image : PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll

Product Details:

Place of Origin:	CHINA
Brand Name:	JIATUO CHINA
Certification:	ISO/ CE
Model Number:	JTPP
Document:	parameter details of PP Str...ne.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Plastic film
Delivery Time:	50-60DAYS To be negotiated
Payment Terms:	L/C, T/T

Contact Now

PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll

Description

Plastic Processed:	PP	Production Capacity:	120-500kgs/H
Warranty:	1 Years	Number Of Extruded Strap:	2/3/4/6/8
Application Scope:	Some Light Cargoes (>240kgs)	Screen Changer:	Automatic/Manual
Thickness Range:	0.4-1.2mm	Width Range:	5-19mm
Applicable Raw Materials:	Recycled Material And Polypropylene	Melting Point:	260 Temperature
Keywords:	Strap Making Machine	Key Selling Points:	High Productivity
Automatic Grade:	Fully Automatic/ Semi Automatic	Inveter:	IVNT
Motor:	Siemens	Worn Parts:	Provide Some For Free
Voltage:	According To Customer's Requests	Winder Type:	Fully Automatic/ Semi Automatic
Highlight:	PLC control PP Straps Making Machine , Siemens Motor PP Straps Making Machine , OEM PP Straps Making Machine

PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll

Parameter of PP 2straps output making machine

crew model	90
Number of strap	2 straps
Width	5-19mm
Thickness	0.3-1.2mm
Screen changer	Automatic/Manual
Control system	PLC control(Chinese and English)
Production capacity	125-150kg/H
Reducer Brand	GUOMAO
Motor Brand	GUGAO

PP packing straps extrusion machine features

High and stable production efficiency
Good quality machine with competitive price
can equip Siemens PLC control, or designed according to customer's requirements

PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll 0
PP packing straps extrusion/production machine
Materials: PP material, or 100% recycling pp flakes and granules.
Application: This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.

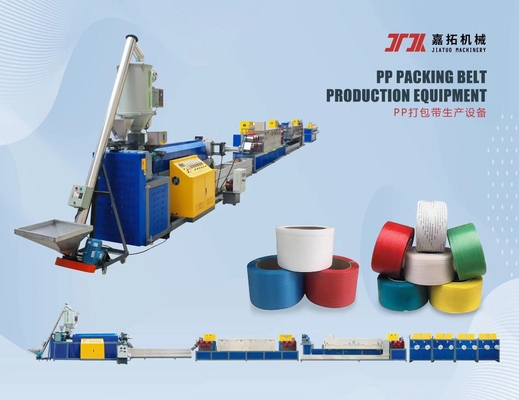

Compositions of PP belt production line

1	Vacuum feeder
2	Hopper dryer
3	Feeding machine
4	¢100 Extruding Machine
5	Automatic Screen filter changer
6	Mould(1 mould for 3 output)
7	Water cooling tank system
8	The first haul-off device
9	Stretching oven
10	The second haul-off device
11	PLC electrical control system
12	Embossing machine
13	Forming oven
14	Cooling system
15	The third haul-off device
16	Double disk winder

Production line process of PP belt production line

Feeding—drying and dehumidification—plasticization and extrusion—mold forming—sink cooling—traction—baking—stretching—embossing—traction—rewinding

PP Strap Manufacturing Machine Make Polypropylene Strapping Band With 5mm 7000m/Roll 1

Machine advantages of PP strap making machine

Use Polypropylene and recycled materials to reduce the cost
Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping
Special design hot forming tensile tank to make good forming ,equal width,straight strap
PLC full automatic controlling from material feeding to winding
Produce high quality high precision straps can use by auto packing tools, also can use by hands tools.
High speed, stable working , no broken during producing.
High capacity, 4 straps can extrude same time by 110mm extruder.

After sale service

1. Pre-sale service:
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.

2. After-service
1 Free installation and debugging
2 Provide all kinds of product formula, technology and chemical material manufacturer information
3 According to the customer's requirements, provide technical guidance
4 Technical training for employees of customers
5 Responsible for maintenance service, door to door service if necessary.
