PET Strapping Band Production Line Width 9 - 32mm PET Strap Extruding Machine
PET PACKAGING BELT EXTRUDING MACHINE DESCRIPTION
PET PP packing strap production is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.
Descripition:
This machine is mainly used to make PET strap ,PP packing strap.
Our machines adopts the PLC control to realsize the whole line auotmatic production.
Using the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.

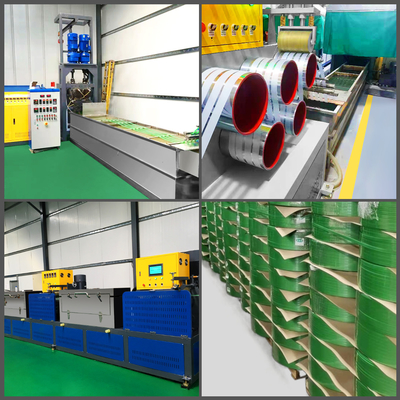

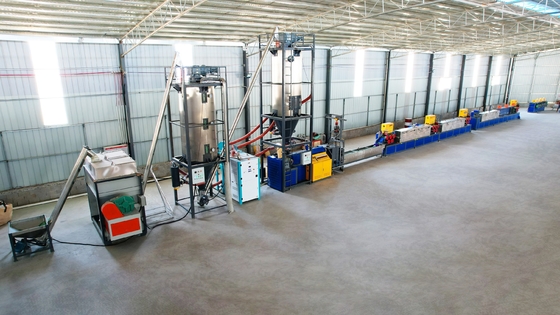

PET Strap Production Line Machine List
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h
PETJT100:250kg/h
PETJT125:350kg/h
|
| 4 |
Product size |
Width:9-32mm
Thickness:0.6-12mm
|
| 6 |
Mid-height of extruder |
7000mm |
| 7 |
Installation power |
PETJT90:200KW
PETJT100:250KW
PETJT125:300KW
|
| 8 |
Humidity |
<85% |
| 9 |
Temperature |
0-40 degree |
| 10 |
Cooling tower capacity |
30T/H or 50T/H |
| 11 |
Installation Dimensions |
PETJT90:45*2.0*7.0M
PETJT100:45*2.0*7.0M
PETJT125:60*3.0*8.0M
|
| 12 |
Product color |
Green/Black/Pink/Yellow |
| 13 |
Factory dimension |
35m*(3~6)m*(4~6)m
45m*(3~6)m*(4~6)m
If your factory not big enough,please contact with us,our engineer can according to your size to design
|
Advantages of PET strap
- Use 100% Recycled PET/PP Flakes to reduce the cost.
- Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
- Special design hot forming tensile tank to make good forming ,equal width,straight strap.
Features of PET packing strap production line:
The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
FUNCTION OF STRAPPING MACHINE
1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;
5) Low Energy consumption, but high production capability;
6)Easy to operate, save the manpower and two persons for one production line on average.
