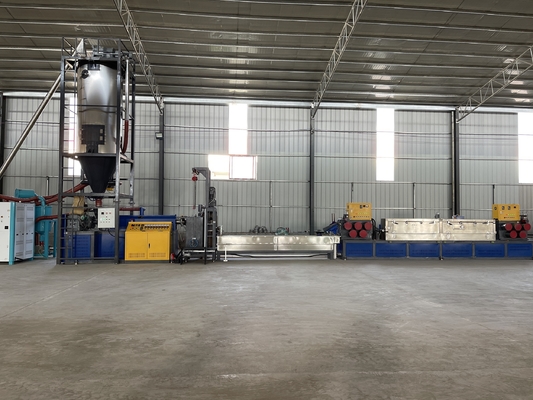

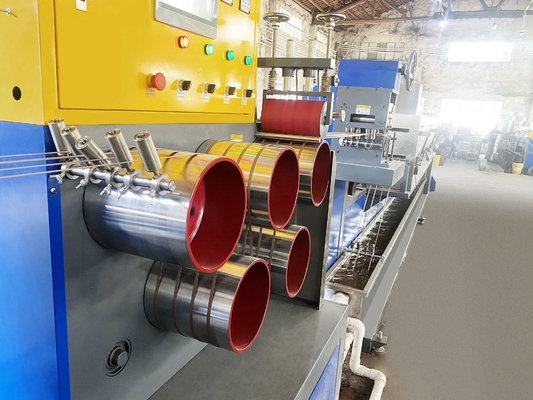

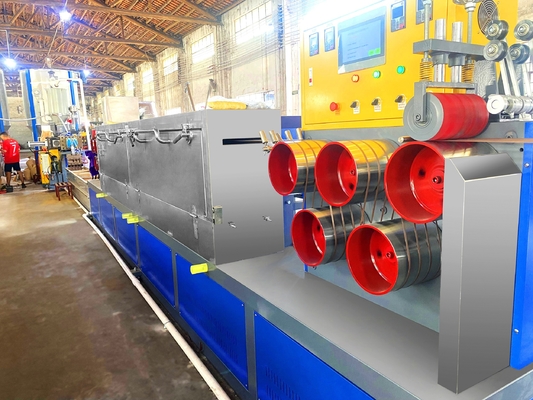

PET Band Extrusion Line 6straps Output Plastic Strapping Machine With Simens Motor Power
PET STRAP MAKING PRODUCTION LINE DESCRIPTION
PET Strap Making Production Line Character
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
PET strap is an alternative to steel strapping, polypropylene strapping material such as new environmentally friendly
packaging materials, mainly used for all kinds of Strapping, such as pallets, cartons, boxes, plastic boxes and other
types of bundled packaging. It also can be used for direct binding, for example: cotton, steel, timber and other packaging.
Now it widely used in cotton, steel, paper, chemical fiber, electronics, food, timber, building materials, packaging and other industries area.
| Item |
Quantity |
| 1. Single screw extruder |
1set |
| 2. auto-loader and drying device |
1set |
| 3. Mould&screen changer |
1set |
| 4. Cooling water tank |
1set |
| 5. the first haul-off |
1set |
| 6. stretching oven |
1set |
| 7. the second haul-off |
1set |
| 8. embossing machine |
1set |
| 9. the third haul-off |
1set |
| 10. calibration water tank including dehydrator |
1set |
| 11. Winder |
1set |
FEATURES
Main features are as follows:
1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ºC, can be used under the environment of 120 ºC for a long time not to distort,it has a good stability.
4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
ABOUT PLASTIC STRAP MAKING MACHINE
• Choice of single or twin screw extruder.
• Production can use 100% recycled material to obtain a high add value commodity like strapping band.
• PLC manages automatically the extruder's working parameters in according with the running condition;material treatment
,extrusion,stretching,annealing and taking up units are all synced with the PLC.
• All components are controlled and monitored through PLC.
• PET or PP straps can be produced with the same technology,to change line set-up from one to the other only take in few minutes.
• High-advanced ABA co-extrusion technology,not only improve strap's tensile strength but also help the peel strength after welding.
• Double column 4 positioned filter chambers,100% full automatic self-cleaning screen changer,working non-stop during
screen changing,it ensures the straps quality is not affected throughout the production.
• Choice of ordering one,two,four straps production line.
• Choice of either servo or torque motor for winding machine.
