Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder

Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder
Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder

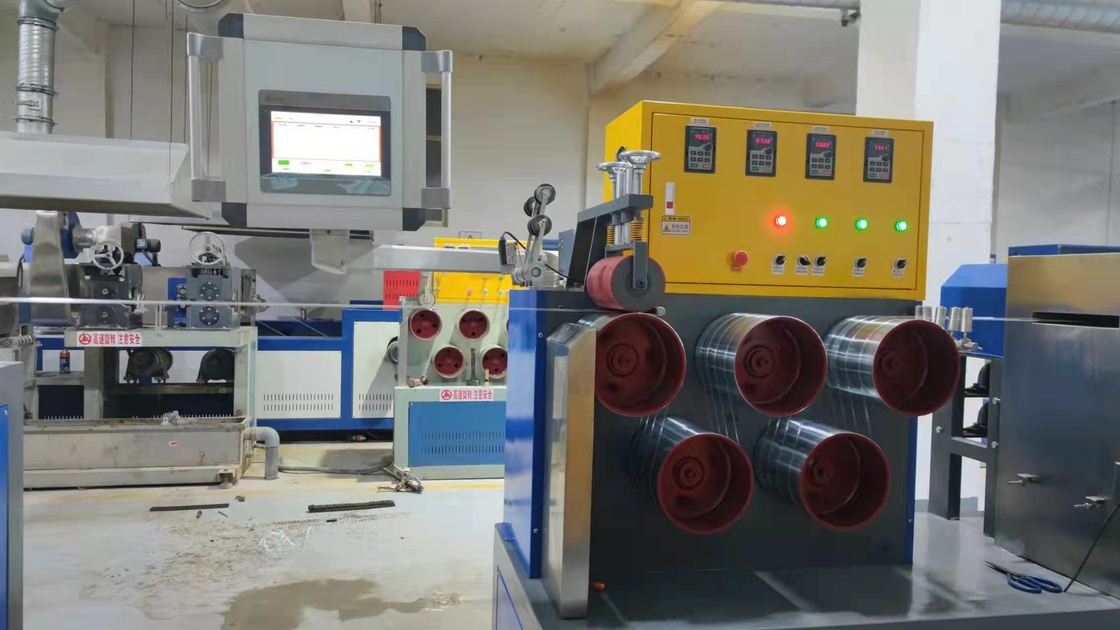

Large Image :  Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Thickness Range: 0.6-12mm PET Strap Width: 9-32mm
Capacity: 200kg/h Driven Type: Electric
Voltage: According To Customer's Factory Motor: Siemens
Product Color: Green/Pink/yellow/black Application: Packaged Material
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year
Highlight:

Plastic Processing PET Strapping Machine

,

PET Strapping Machine 32mm

,

PET Strapping Single Screw Extruder

Plastic Processing Machinery PET Strapping Machine With Single Screw Extruder

PRODUCT DESCRIPTION

1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.



PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

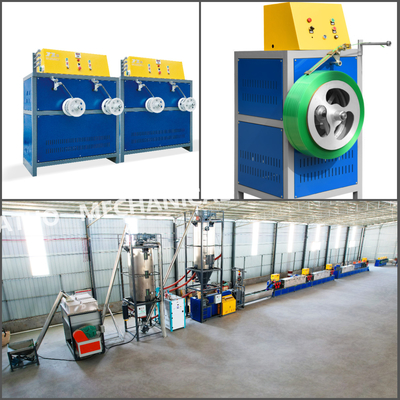

Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder 0
Advantages of PET strap

  • Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
  • The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained a long time.
  • Strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120° C, maintaining good stability.
  • Compare with steel strap,it have obvious economic benefits for customer

Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder 1

Our Best Services PET packing strap production line:

1. Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of eq uipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3. After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.



Plastic Processing PET Strapping Machine 32mm With Single Screw Extruder 2
