Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder

Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder
Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder

Large Image :  Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: 1 To 4 Processing Type: Extruding Machine
Capacity: 200kg/h Power: 100KW
Driven Type: Electric Application: Packaging Strap
Automation: Automatic Warranty: 1 Year
Highlight:

Packing Belt Making Machine 100KW

,

Polypropylene Packing Belt Making Machine

,

100KW Polypropylene Strapping Band Extruder

Plastic Packaging PP Strap Making Machine Polypropylene Band Roll Extrusion Line



PRODUCT DESCRIPTION

PP strap making machine is mainly for producing PP strap.
The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit.
And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature
resistant, easy use.
It is mainly suitable for packaging for various trades.



PP strapping production line 1 to 4 product parameters:

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

Model No. Screw Size No. of strap Capacity Total Power Width Range Thickness Range Installation Dimensions
JTPP-90 2800mm 2 100kg/h 80kw 5-19mm 0.4-1.2mm 30*2.0*4.0M
JTPP-100 2800mm 3 150kg/h 90kw 5-19mm 0.4-1.2mm 30*2.2*4.0M
JTPP-110 3300mm 4 200kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M
JTPP-110 3300mm 6 130kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M

Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder 0

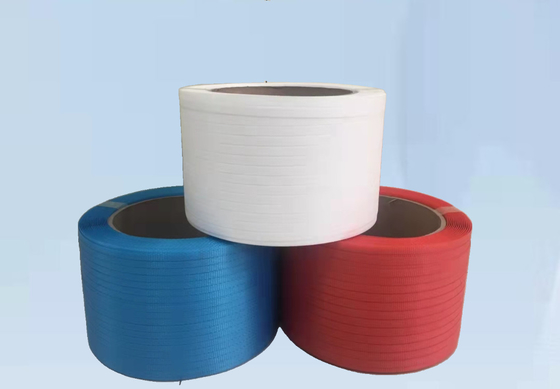

Plastic Strapping

Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.

Polypropylene Strapping

Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length

Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder 1

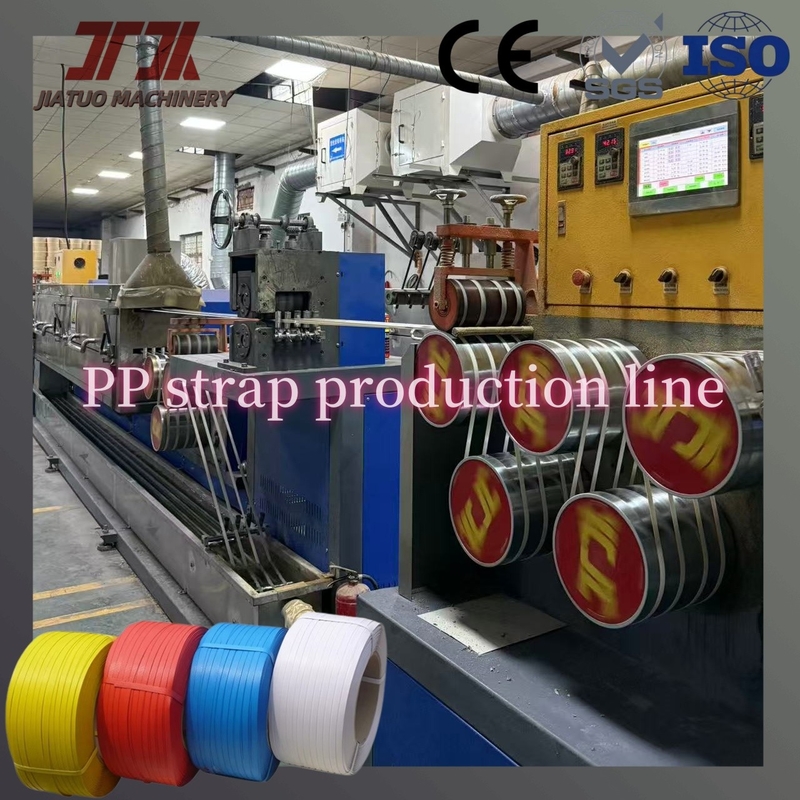

Features of PP strapping production line:

1. PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;


2. Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;


3. With the multi-purpose machine, produce the PP PET straps in different specifications directly and don not need to change the mould head;


4. Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;


5. Low Energy consumption, but high production capability;


6. Easy to operate, save the manpower and two persons for one production line on average.



Model Strap Width Strap Thickness Break Load Net Weight Strap Length Core Size
PP05005 5mm 0.5mm >40kg 10kg >6700M 200mm
PP06006 6mm 0.6mm >50kg 10kg >5800M 200mm
PP08005 8mm 0.5mm >60kg 10kg >3600M 200mm
PP09005 9mm 0.5mm >80kg 10kg >3300M 200mm
PP09006 9mm 0.6mm >90kg 10kg >3000M 200mm
PP09007 9mm 0.7mm >100kg 10kg >2500M 200mm
PP09008 9mm 0.8mm >120kg 10kg >2300M 200mm
PP12006 12mm 0.6mm >120kg 10kg >2300M 200mm
PP12007 12mm 0.7mm >130kg 10kg >2000M 200mm
PP12008 12mm 0.8mm >150kg 10kg >1660M 200mm
PP13506 13.5mm 0.6mm >130kg 10kg >2000M 200mm
PP13507 13.5mm 0.7mm >150kg 10kg >1700M 200mm
PP13508 13.5mm 0.8mm >160kg 10kg >1440M 200mm
PP13510 13.5mm 1.0mm >170kg 10kg >1250M 200mm
PP15005 15mm 0.5mm >130kg 10kg >2100M 200mm
PP15006 15mm 0.6mm >140kg 10kg >1830M 200mm
PP15008 15mm 0.8mm >160kg 10kg >1250M 200mm
PP15010 15mm 1.0mm >180kg 10kg >1100M 200mm
PP18008 18mm 0.8mm >220kg 10kg >1100M 200mm


FAQ


Q: How to choose the suitable machine?
A: We will recommend based on your demands for your reference.

Q: Can you send me the video to show how the machine work?
A: Each machine has its operation video and manual.


Q: Can you send me the video to show how the machine work?
A: Of course! We have made video of every machine. Pls. contact with us, we will send you the machine video.

Q: What about your installation service and sales service?
A: 1.ome spare parts of the machine are wearable, so these wearable spare parts can be offered for free in 3-month warranty and other parts in 1-year warranty. However, we hope you can understand that you need to bear the freight and other expenses due to the long distant. We kindly remind you that you can purchase several sets of wearable spare parts when you place the order so as to avoiding the unnecessary expense. What's more, all spare parts of our machine are available for sale.


Q: How to choose the suitable machine?
A: We will recommend the most suitable machine for you after we know your application requirements. We will offer good suggestions for your reference.

Q: What if we are not able to use the machine when we receive it?
A: You needn't worry about it. It's easy to use. Every machine has an instruction book, and there are installation and operating parts. Besides, we also have video demonstration, if you need we will send it to you a.s.a.p. Finally, we have professional after-sale to solve any problems.


Plastic Packing Belt Making Machine 100KW Polypropylene Strapping Band Extruder 2

Tag:

150kg/H PP PET Strap Manufacturing Machine,

60KG Semi Automatic Strapping Machine,

15mm Strap Semi Automatic Strapping Machine
