9-32MM high-speed PET plastic steel belt production line PET manufacturing equipment PET strapping machine with fully automatic wrapping machine
PRODUCT DESCRIPTION
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
Raw materials:
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
PRODUCT DESCRIPTION
| NO. |
Item |
Specification |
| 1 |
Power |
380V/50HZ, support customization |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Model |
PETJT90 PETJT100 PETJT125
|
| 4 |
Product size |
Width:9-32mm Thickness:0.6-12mm
|
| 5 |
Power |
200KW-300KW (Operating power: 50-55%)
|
| 6 |
Control system |
PLC control |
| 7 |
Product color |
Green/Black/Pink/Yellow |
| 8 |
Wrapping machine |
Automatic or semi-automatic
|
Features of PET packing strap production line:
1)Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity≤80PPM at -50°C dew point. Meanwhile, it compact material and increase the viscidity.
2)Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.
3)Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
4)Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.
5)Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product’s stretch intensity

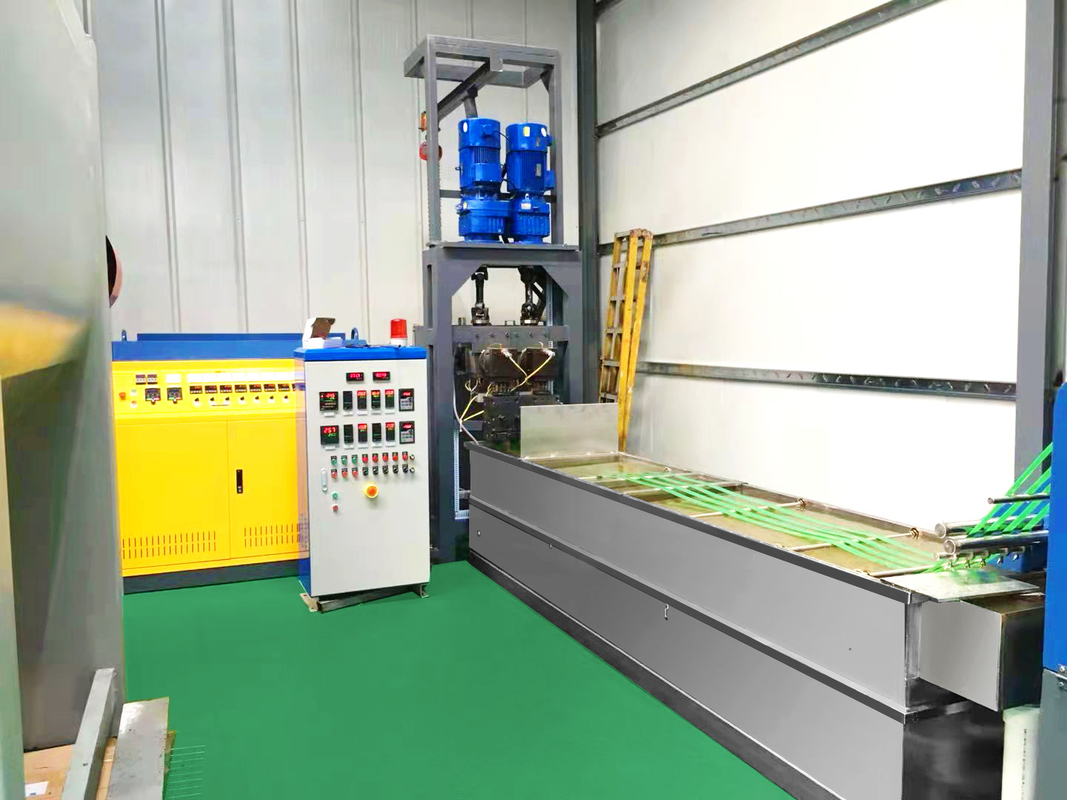

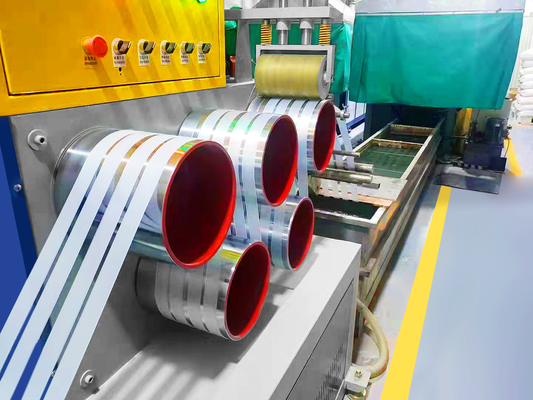

DETAILS ABOUT PET STRAP MAKING MACHINE
1. Components of pp pet packing belt machinery:
PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
Why do we need to add PET toughening agent to PET plastic steel belt? What is the role of toughening agent?
THE MAIN FOLE OF PET TOUGHENING AGENT:
Improve impact resistance------By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reducing processing temperature, reducing energy consumption, and improving fluidity to make processing smoother.
Enhance flexibility-------Make PET material softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
Application areas:
Packaging industry: used for packaging of various items, such as building materials, metals, paper products, etc.
Logistics industry: used for fixing and bundling during cargo transportation.
Other industries: such as home appliances, food, chemicals, etc.
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
