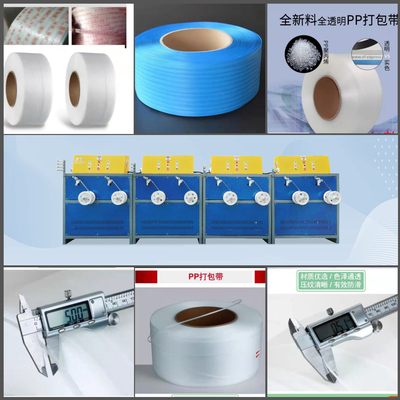

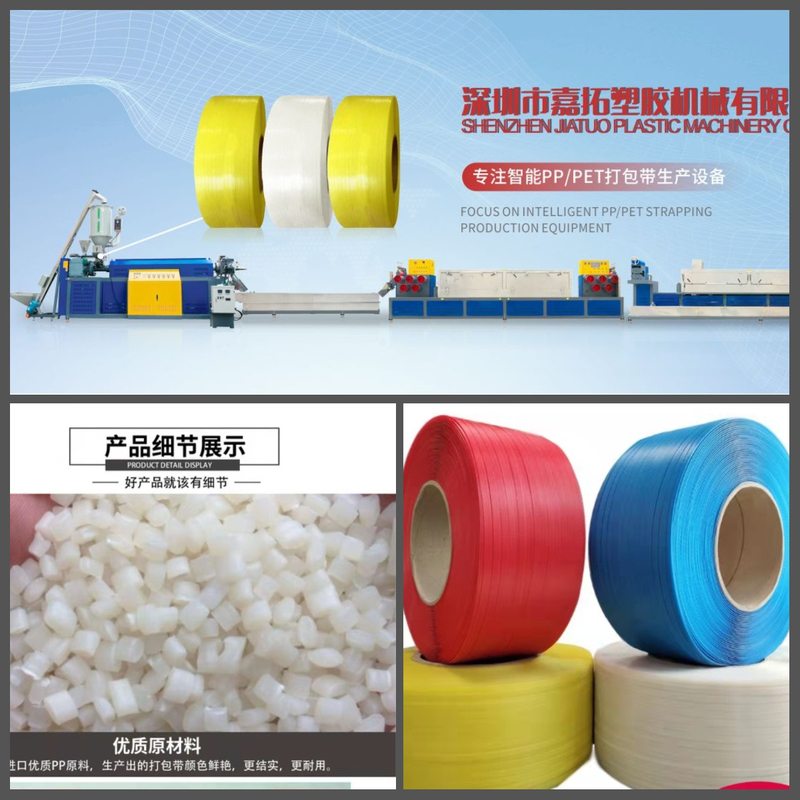

Automatic Custom PP Strap Recycling Packing Roll Extruder Machine 5mm
PRODUCT DESCRIPTION
PP strap making machine is mainly for producing PP strap.
The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit.
And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature
resistant, easy use.
It is mainly suitable for packaging for various trades.
| Model No. |
Screw Size |
No. of strap |
Capacity |
Total Power |
Width Range |
Thickness Range |
Installation Dimensions |
| JTPP-90 |
2800mm |
2 |
100kg/h |
80kw |
5-19mm |
0.4-1.2mm |
30*2.0*4.0M |
| JTPP-100 |
2800mm |
3 |
150kg/h |
90kw |
5-19mm |
0.4-1.2mm |
30*2.2*4.0M |
| JTPP-110 |
3300mm |
4 |
200kg/h |
100kw |
5-19mm |
0.4-1.2mm |
38*2.0*4.0M |
| JTPP-110 |
3300mm |
6 |
130kg/h |
100kw |
5-19mm |
0.4-1.2mm |
38*2.0*4.0M |
Plastic Strapping
Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.
Polypropylene Strapping
Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length
Features of PP strapping production line:
1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.
Advantage of our machine
Now introduce you our machine general design concept :
1. pet pp straps can produce by same machine . only change the mould and PLC program is ok. This changing can finish within a very short time.
2.for pet crystallization and humidity removing system
Main features :
- Molecular sieve drying , dew point:-30~ -45℃
- Has three functions : crystallization, drying and humidity removing .
Honeycomb humidifier
Big volume heating tank, remove water, dust effectively
Rise IV from 0.65-0.8
3.pet pp straps extruder
special designed screw and barrel. motor , gear box all adopt high quality supplier.
4. mould same as Italy design , change mould core very easy.
5. water tank: temperature constant keeping, tank can move by motor control in up and down , left and right , forward and backward.
6. rollers surface treatment high precision. Adopt inclined gear drive , not chain, this is very strong and stable. Big stretching motor enough to afford the high stretching rate. This guarantee make high stretching rate straps.
7. heating oven upper and down side all have heaters. Install with blower, this keep stable temperature inside the oven. Oven tank middle layer has insulation layer to keep constant temperature. The oven open and close drive by motor, stable and safety. Oven had checking window to check the stretching points for operator . inside the oven, there are drive rollers to keep straps winding inside the oven to get enough temperature.
8. embossing high precision embossing rollers. Two rollers drive. Can give stable , evenly and clearly embossing to each pieces of straps.
9. calibration forming system
We adopt heating and water cooling combination system. Heating oven give stable heating to the straps, and water tanks give correct low temperature to let the straps get quenching . water remover system installed in the water tank.
10 . winding system.
We have manual and PLC control automatic winder for customer selection.
11. electric system
PLC touch screen control, by pressure close-loop controlling method.
All above parts designing and purchasing , we adopt CE standards. Europe safety level. All the problems which is possible happened in the machine , we had all considered already. Economic and practical , professional designing and precision processing are our focus features.
