INTRODUCTION OF HANDHELD ELECTRIC STRAPPING MACHINE

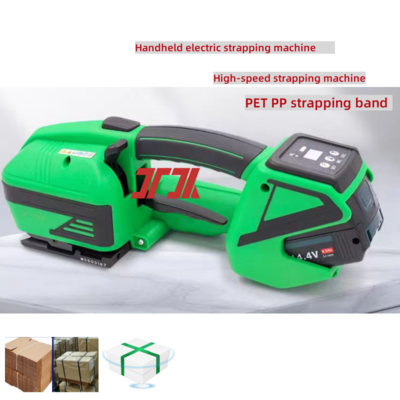

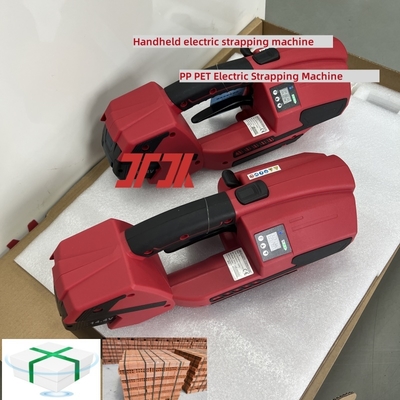

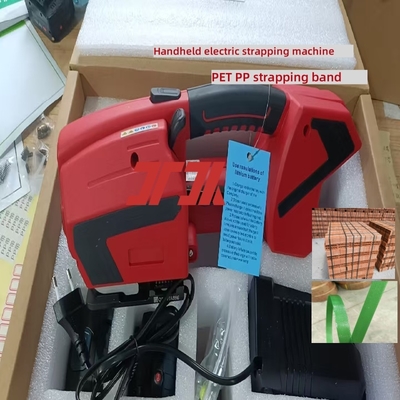

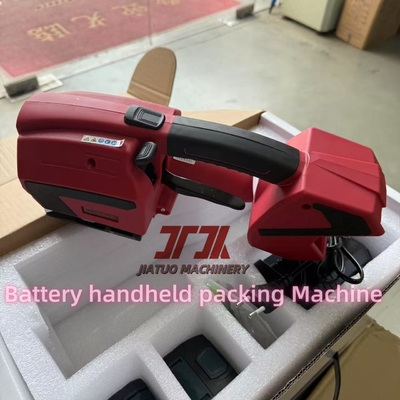

Handheld electric strapping machines
Electric Strapping Tool
An electric strapping tool, also known as an electric strapping tool, is an automated, electrically powered tool that quickly tightens, secures, and cuts strapping straps (such as PP straps, PET straps, or steel straps). It is widely used in industries such as logistics, warehousing, manufacturing, and construction. Compared to manual or pneumatic strapping tools, it offers greater efficiency and lowers labor consumption, making it suitable for medium- to high-strength strapping.
BASIC COMPONENTS
Electric strapping machines typically consist of the following core components:
Motor System--------Provides power, driving the tensioning, locking, and cutting operations.
Control Module-------Adjusts tension and controls the operating process (some models include a display).
Strapping Mechanism-------Includes a strap guide, friction welding joint, or metal buckle locking device.
Cutter-------Automatically cuts excess strapping, ensuring a smooth cut.
Power Supply--------Lithium battery (mainstream) or plug-in (industrial-grade), typically 12V-24V.
DETAILED PARMETERS
| Name |
Handheld electric strapping machine |
| Model |
JT-D16 |
| Applicable strapping |
PP, PET strap |
| Applicable width |
13-16mm |
| Applicable thickness |
0.4-1.2mm |
| Battery capacity |
4.0Ah 5/60hz 57.6wh |
| Tension speed |
100-200mm/s |
| Sealing method |
friction welding |
| Tensile force |
900-3200N |
| Machine size |
L380XW130XH130mm |
| Weight |
3.1KG |
CORE STRUCTURE
Main Body------Contains the motor, control circuitry, transmission mechanism, and friction bonding.
Tightening Mechanism------Automatically tightens the strapping and maintains tension, ensuring high bond strength and preventing it from falling off.
Locking Device------ Secures the strapping material using friction welding or metal buckles.
Cutter------ Automatically cuts off excess strapping material after bundling.
Battery Compartment------ Removable lithium battery (common voltages 12V-24V).
Guide Slot------Guides the strapping material for proper insertion.
SERVICES
1. Warranty: 12 months
2. Product introduction
3. Product inspection and shipping reports
4. Free spare parts
5. Operating instructions
6. Troubleshooting
FAQ:
Q: Can the handheld electric strapping machine be shipped by air?
A: Yes, we can. We provide all test reports.
Q: What products are suitable for the handheld electric strapping machine?
A: PP, PET strapping, Width: 13-25mm,plastic-steel strapping, etc.
Q: What is the voltage of the handheld electric strapping machine?
A: 220V, customizable.
Q: What is the bonding method of the handheld electric strapping machine?
A: Friction bonding.
Q: What is the warranty period for the handheld electric strapping machine?
A: 12 months.
Q: Can the color of the handheld electric strapping machine be customized?
A: Customizable in bulk quantities.
