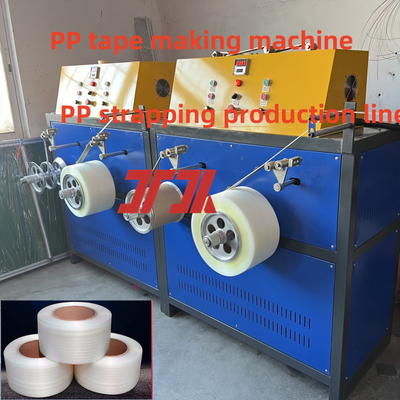

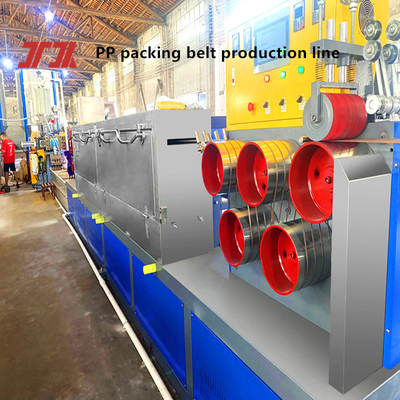

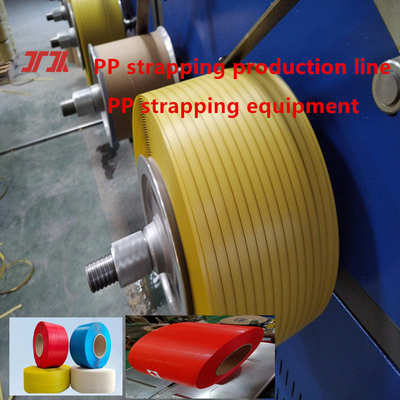

Plastic Machinery PP Packing Strap Production Line PP Extruder Equipment with 200-300 m/min
PRODUCT DESCRIPTION
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Main features of PP strapping production line
High efficiency----high degree of automation, PLC control system, fast production speed, line speed 200-300 m/min.
High quality----high speed rotation, high output, low power consumption, the finished PP straps produced have good toughness and bending resistance, which meet the requirements of fully automatic strapping machines.
Environmental protection----Use PP new materials or recyclable materials for production, non-toxic, odorless and degradable.
Multi-function----Can produce different specifications of width, thickness, length and weight. Width: 5-19mm, thickness: 0.3-1.2mm.
Our PP strapping equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PP strapping equipment.
2. Analysis of finished product manufacturing costs of PP strapping equipment.
3. Analysis of raw materials used in PP strapping equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PP strapping equipment.
2. Installation, commissioning and training of PP strapping equipment.
3. Repair service of PP strapping equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
8. Training and technical consultation
FAQ
Q: Are you factory or trade company?
A: We are factory and we have a professional engineer team which can design the machine as customers' request
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and rich experience about machines and global market.
We boast of professional engineer team and after-sale service team.
Q: If we've bought a machine from you, are you able to supply us with material?
A: We can offer you or help you to find suitable materials for your machines.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available. If any question during operation,
you can contact us, and we'll help you to solve the problems.
Q: Do you sell only standard machines?
A: No, most of our machines are made according to customers' special requirements, and all our machines can be customized.
